Disk specifications

2 DISC TYPES depending on each application requirements:

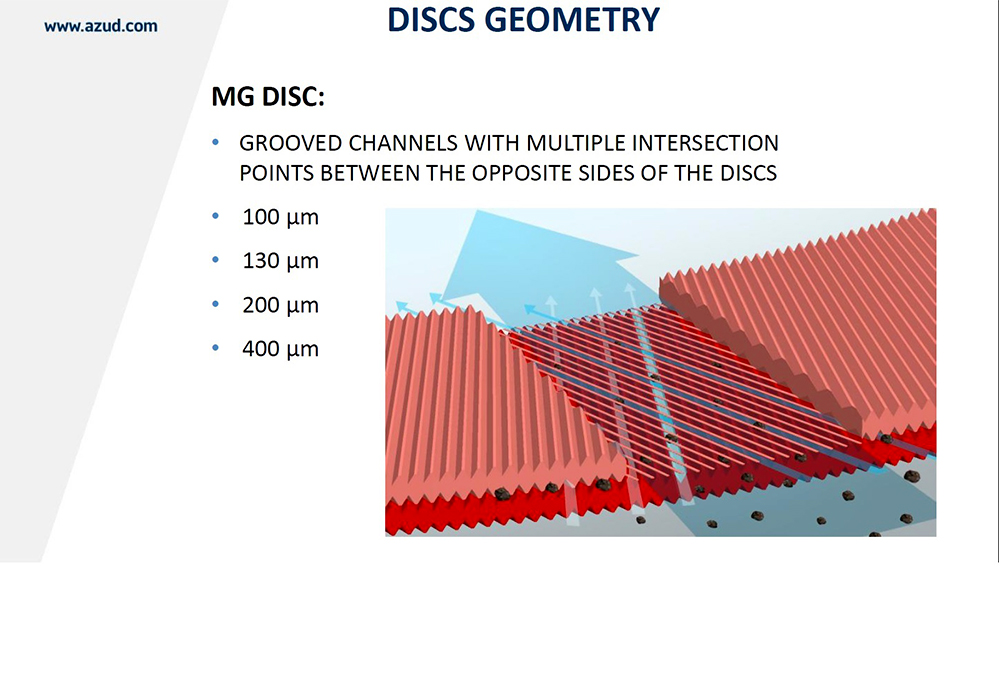

AZUD MG disc: grooved filtration channels on both sides of the disc.

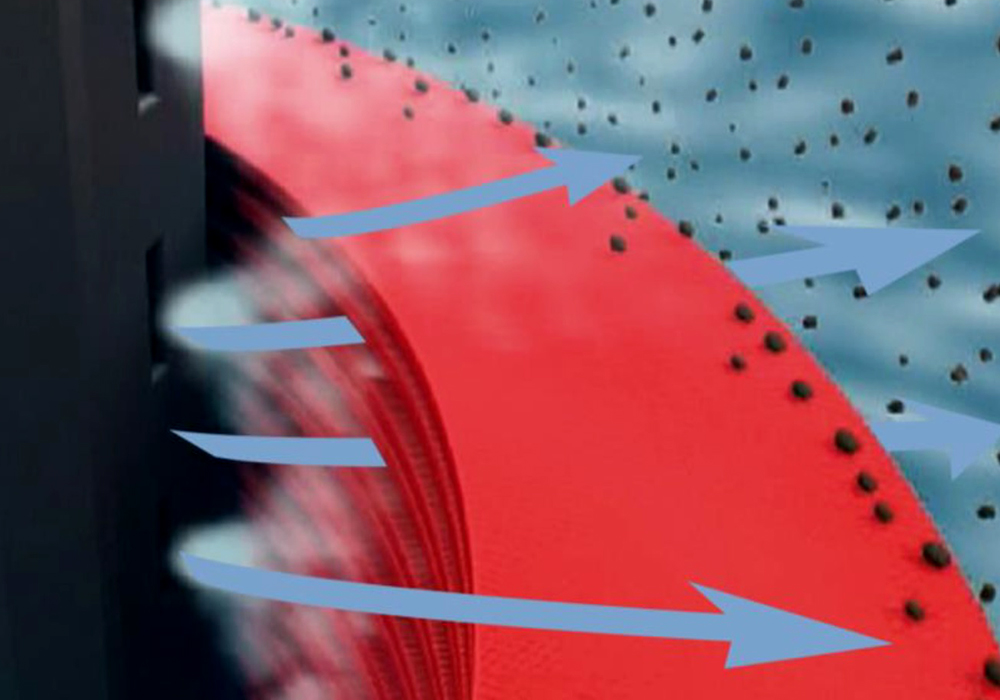

In-depth filtration, trapping along the disc channel even smaller particles than the filtration degree.

Filtration degrees: 100 – 130 – 200 – 400

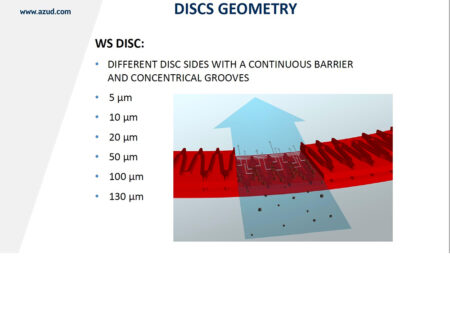

AZUD WS disc: different geometry and functionality on both sides of the disc.

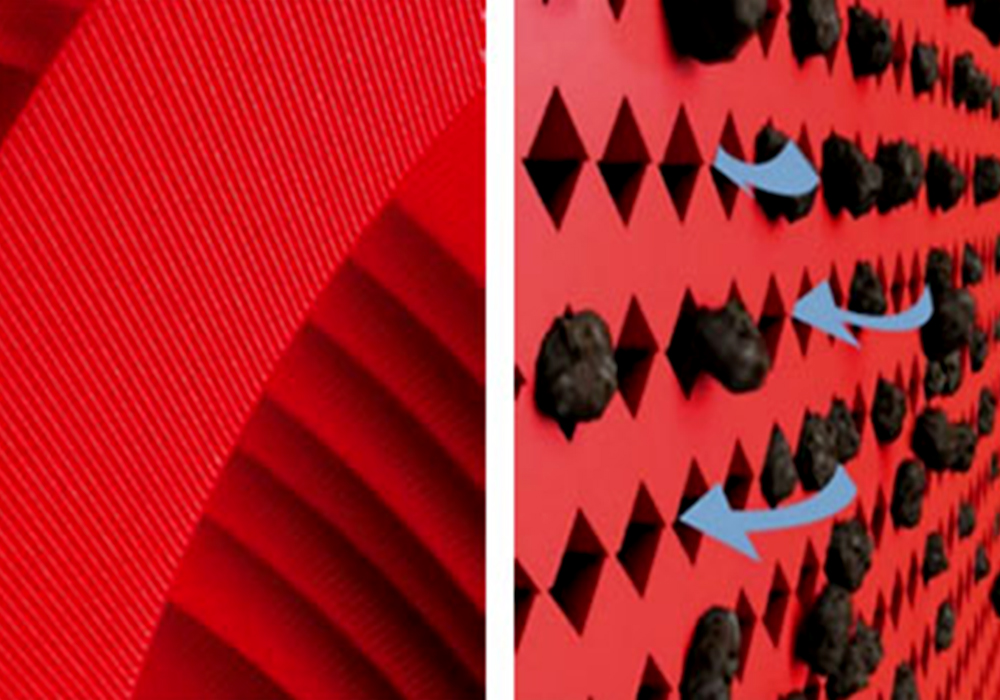

Surface filtration, with a large volume of particles retention thanks to the multiple intersection crosses between channels.

Filtration degrees: 5 – 10 – 20 – 50 – 100 – 130

Increase depth filtration and particles retention capacity

thanks to a longer grooved channel.

More filtration channels per disc

with increase grooves creating more intersection points
