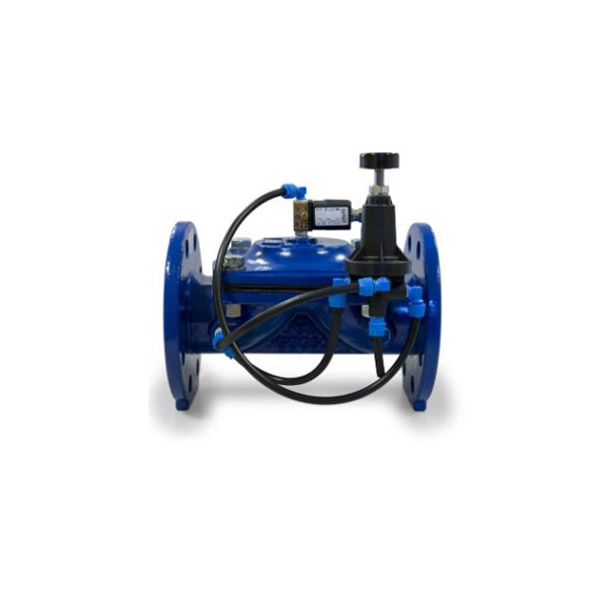

SUSTAINING VALVE KIT
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|
A CAREFUL VALVE DESIGN, THE NATURE OF THE COMPONENTS USED IN THEIR MANUFACTURE PROCESS, ADDED TO OUR STRICT QUALITY CONTROL TECHNIQUES, ALLOWS US TO OFFER A WIDE RANGE OF RELIABLE AND HIGH-QUALITY PRODUCTS
MAIN FEATURES
● High resistance to operation and exposure conditions. Anticorrosion epoxy-polyester coating.
● Chemical and mechanical resistant diaphragm with low opening pressure.
● Wide regulation range.
● Accurate and stable regulation.
● Low head loss.
● Easy maintenance.
● Bidirectional valve.
APPLICATIONS
Auxiliary element, installed downstream the filtration equipment, responsible for ensuring a pressure value during the self-cleaning phase, equal or higher than the required value to guarantee an effective cleaning.
Technical Specifications
| Max working pressure | PN10 –10 bar (145 psi), PN6 – 6 bar (87 psi) |
|---|---|
| Body material | Cast iron with epoxy-polyester coating |
| Spring material | SS 304 |
| Diaphragm material | Natural rubber reinforced with nylon fabric |
| Regulating pilot | Plastic (1-10 bar) |
| DLP regulating pilot | Plastic (0.6-6 bar) |
| Solenoid | 3/2-way NC, Hydraulic command |
| Operating voltage | 24V AC FBC, 24V DC FBC LOGIC |
Other Features
| Cconnections | |
|---|---|
| 2 inch | Thread BSP |
| 3 inch | Flange DIN 2576 |
| 4 inch | Flange DIN 2576 |
| 6 inch | Compatible flange DIN 2576 / ANSI B16.5 |
| 8 inch | Compatible flange DIN 2576 / ANSI B16.5 |
| 10 inch | Flange DIN 2576 |
| 12 inch | Flange DIN 2502 |
- It is possible for the manufacturer to change the technical specifications without prior notice.

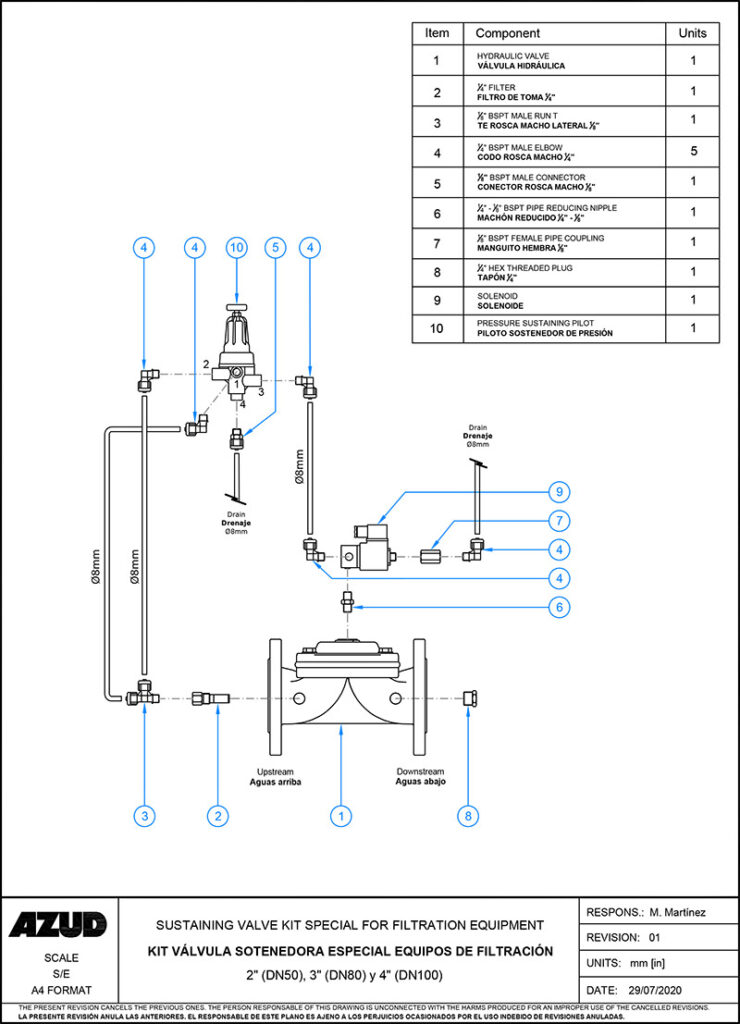

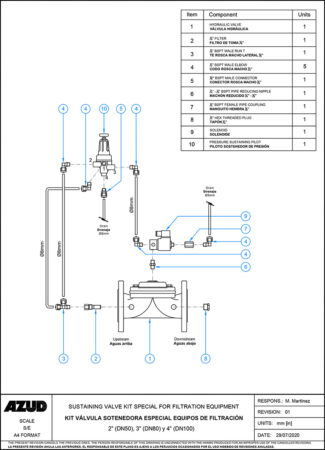

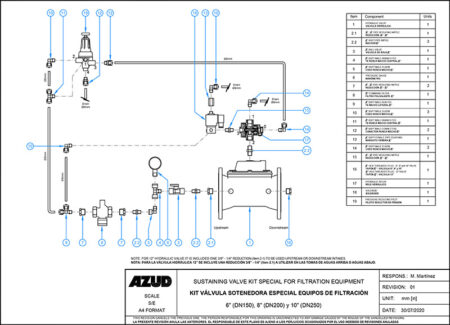

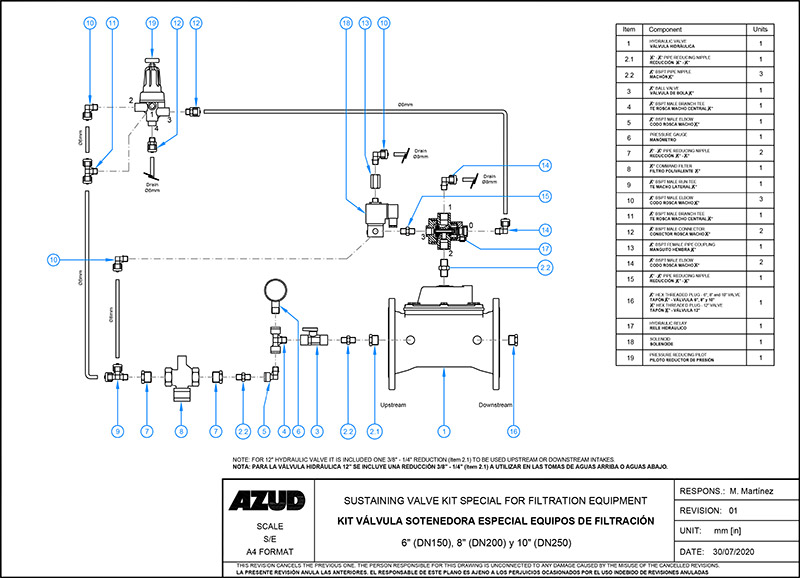

Technical drawings
