AZUD HELIX AUTOMATIC FT200 AA DLP
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| Standard series for low salinity water | FT200 AA DLP |
| Special series for seawater and high salinity water | FT200 AA SW DLP |

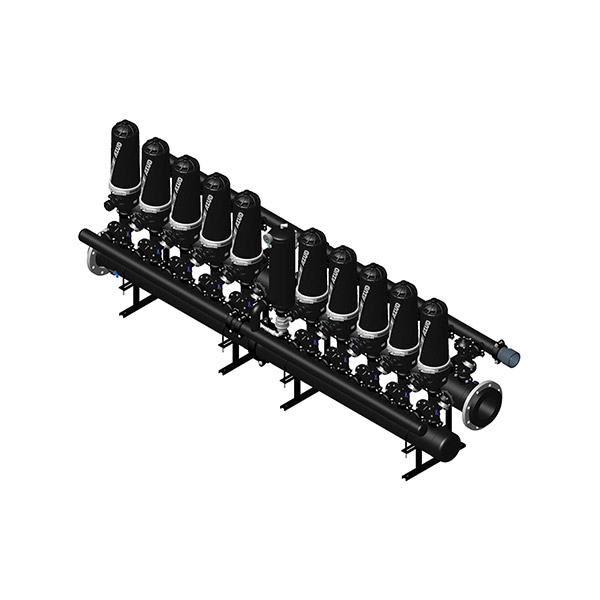

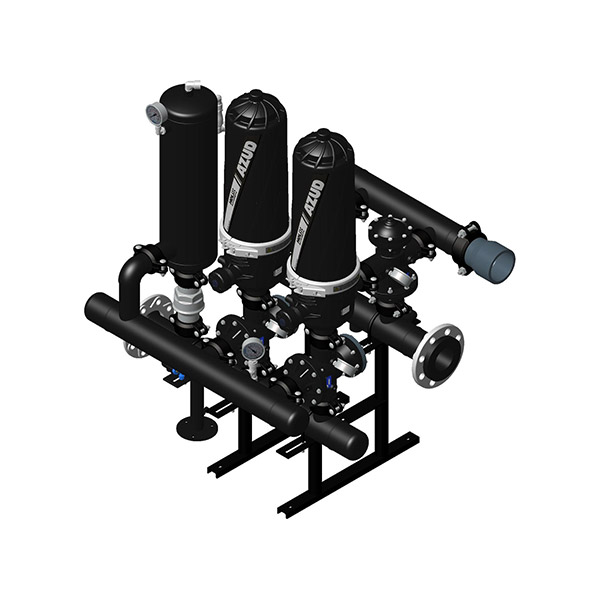

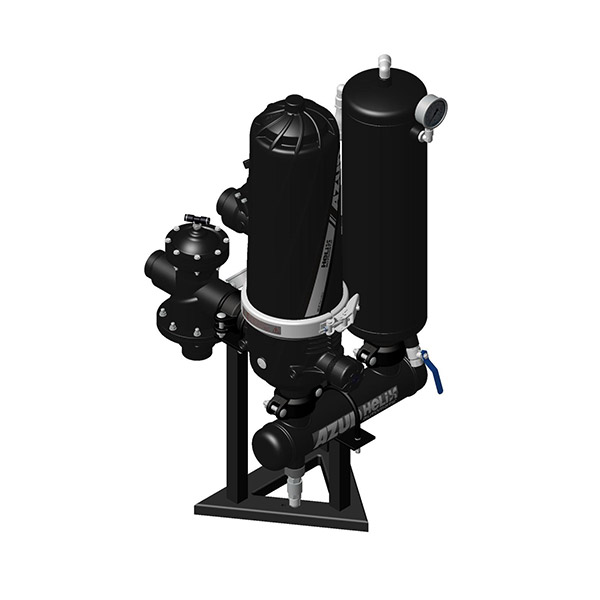

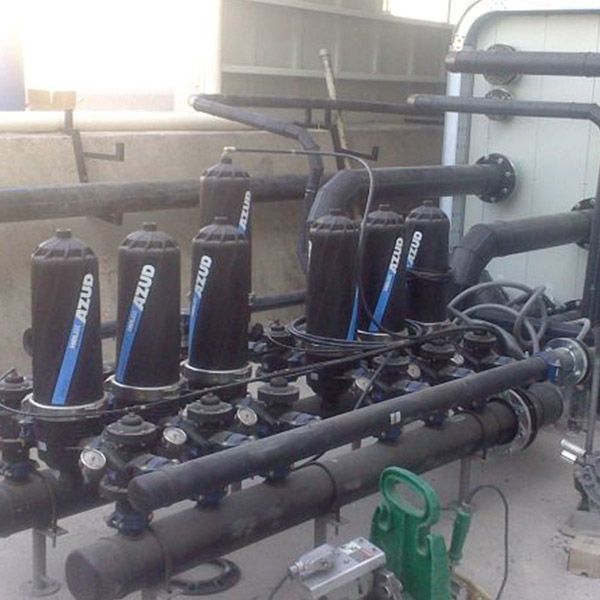

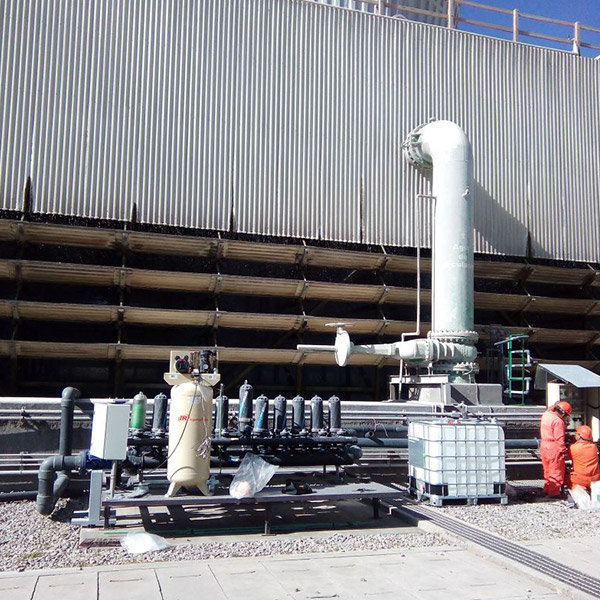

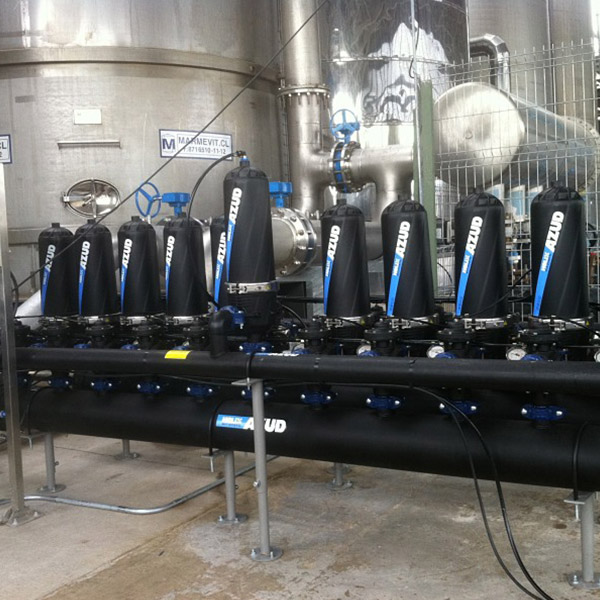

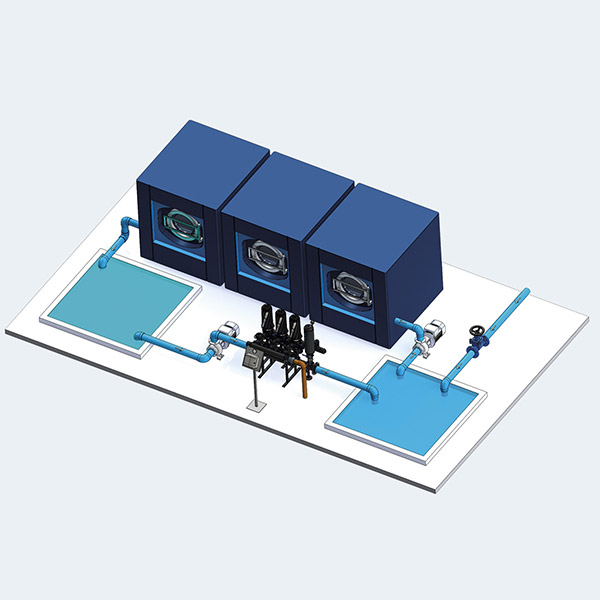

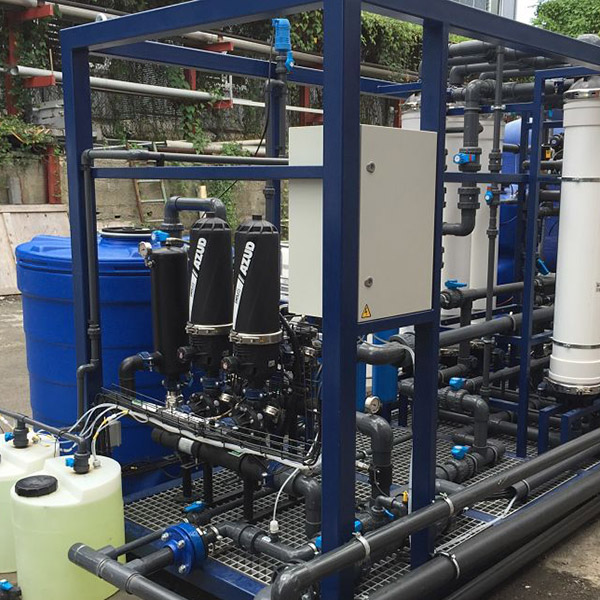

Self-cleaning disc filtration equipment composed by 1 to 10 filters AZUD HELIX AUTOMATIC Ø2″ with discs AZUD MG/WS, which perform an in-depth 3D filtration, installed in-line on Ø2″-Ø8″ inlet/outlet manifolds. Includes Ø2″ backwash valves 3-way membrane type and the innovative DLP TECHNOLOGY, that enable the sequential low-pressure backwashing of each filter using a mix of filtered water and compressed air stored in an auxiliary tank, while continues the filtered water supply downstream. The patented AZUD HELIX anti-clogging deflector provides a reliable filtration thanks to an effect of centrifugal separation, with less backwash frequency and less water and energy consumption.
Smart, compact and modular plug&play solution, made of technical thermoplastics, increases the shelf life of the installation providing a long-term operation with minimum operational costs and less maintenance downtime.
Avda.
Technical Specifications
| Filter Type | Helix automatic disk filter (self-cleaning system) |
|---|---|
| Num of filter | 1-10 filters Ø2” (rPA) |
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 10 bar (145 psi) Min: 0.8 bar (11.6 psi) |
| Min. flushing pressure | Max: 6 bar (87 psi), Min: 4.5 bar (65 psi) |
| Min. backwash flow | 10 L water per filter |
| Air flow x duration | 18 l/s (285 gpm) x 10 s |
| PH | 4 – 11 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | 1000 – 500 – 300 – 200 – 125 – 100 – 80 – 50 (micron) |
| Connections type | Flange ANSI B16.5 – Flange DIN 2576 – Grooved |
Other Features
Pneumatic command (PN)
Air assisted backwash equipment
2 x 2” Diaphragm 3-way backwash valve for each filter – Pneumatic command (H)
Base-lid: rPA – Shaft: SS 303 – Seat: SS 304 – Spring: SS 302
Inlet/Outlet HDPE manifolds: Ø 2”-8” (50-200 mm) – Flange/Grooved
Drainage HDPE manifold: Ø3” (90 mm) – Grooved/PVC (Glue)
2 x ¼” BSP glycerine manometer male thread. bar/psi double scale (0-10 bar / 0-145 psi) per filtering elements, one on the auxiliary tank.
To view the filter specifications, refer to the technical specifications table of HELIX AUTOMATIC FT DLP series.
- 1 filter packages come with FBC 101 AA unit control.
- 2-10 filter packages come with FBC 110 AA unit control.
- It is possible for the manufacturer to change the technical specifications without prior notice.

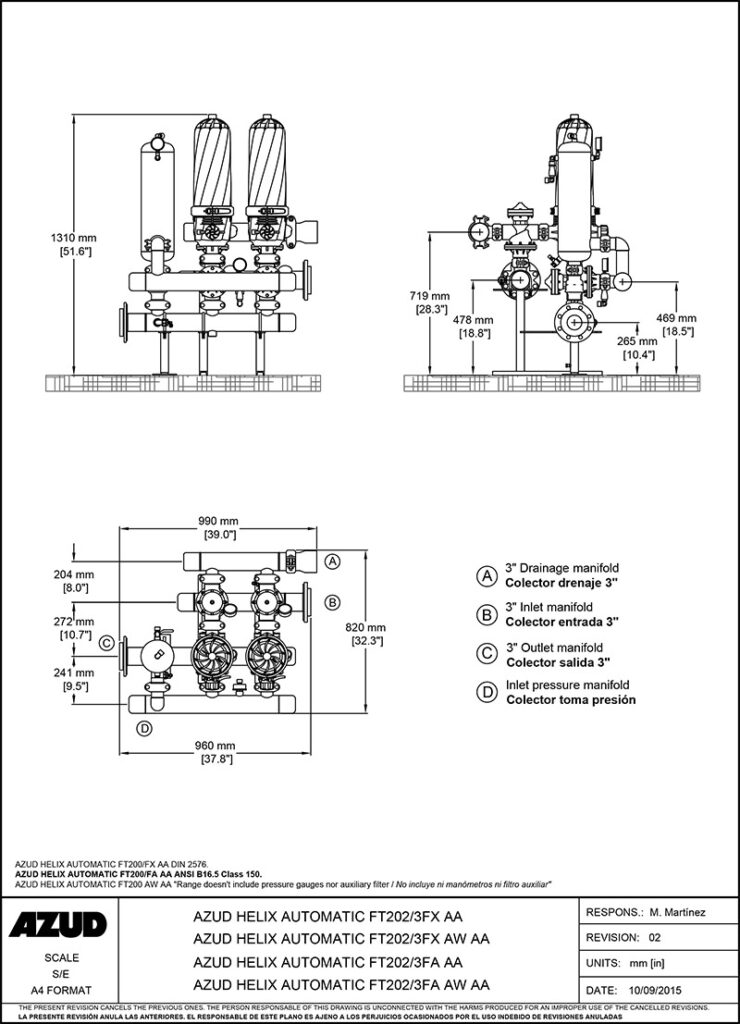

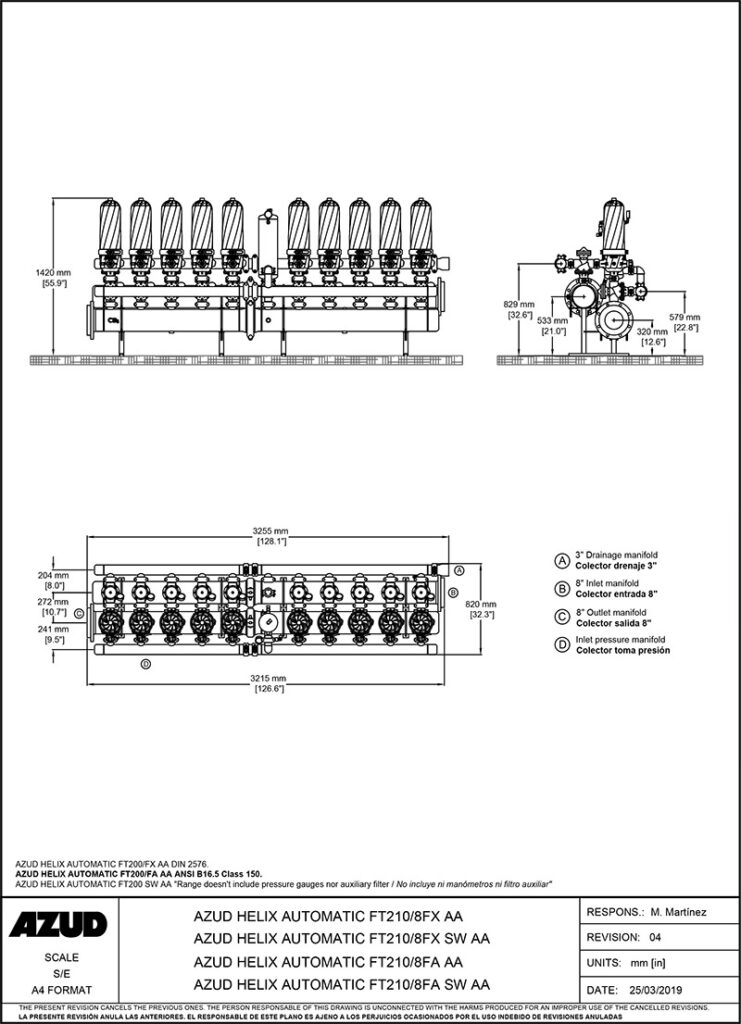

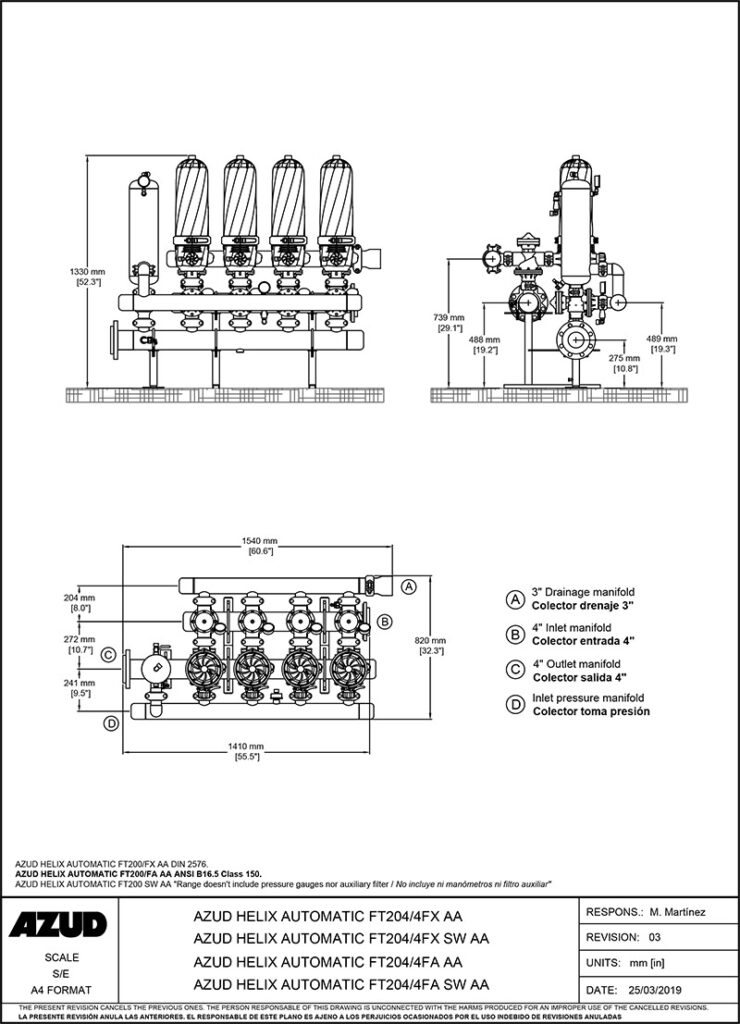

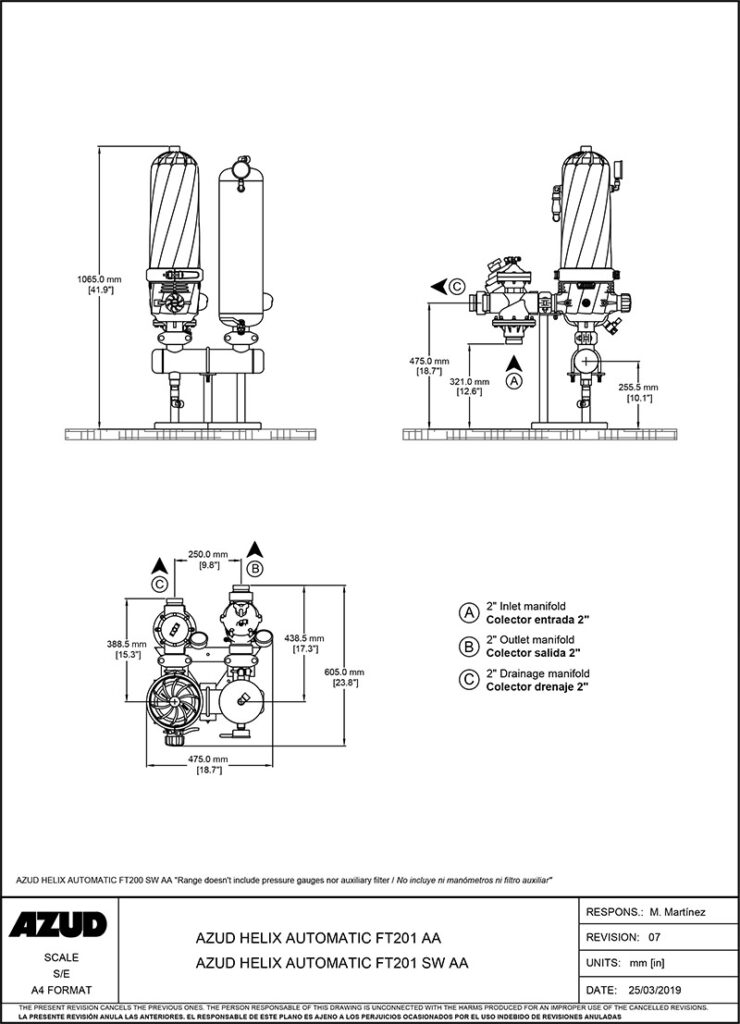

Technical drawings
