AZUD HELIX AUTOMATIC FT300 DLP
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| low salinity water – TDS < 6000 mg/l | FT300 DLP |
| High working pressure series (16 bar) suitable for low salinity water | FT300 HP DLP |

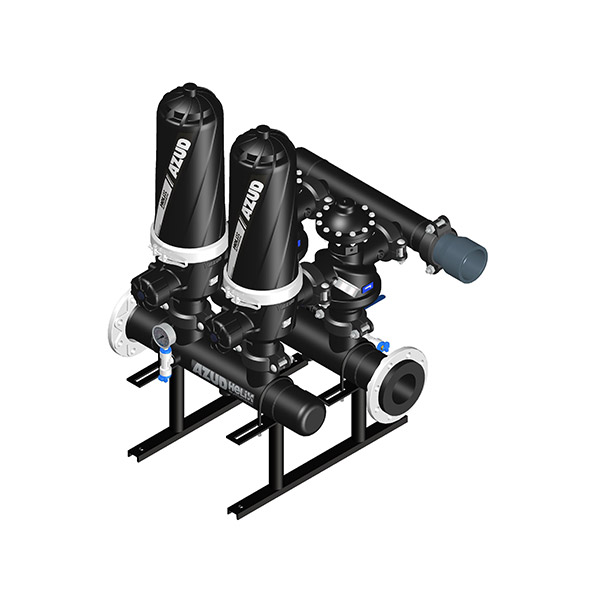

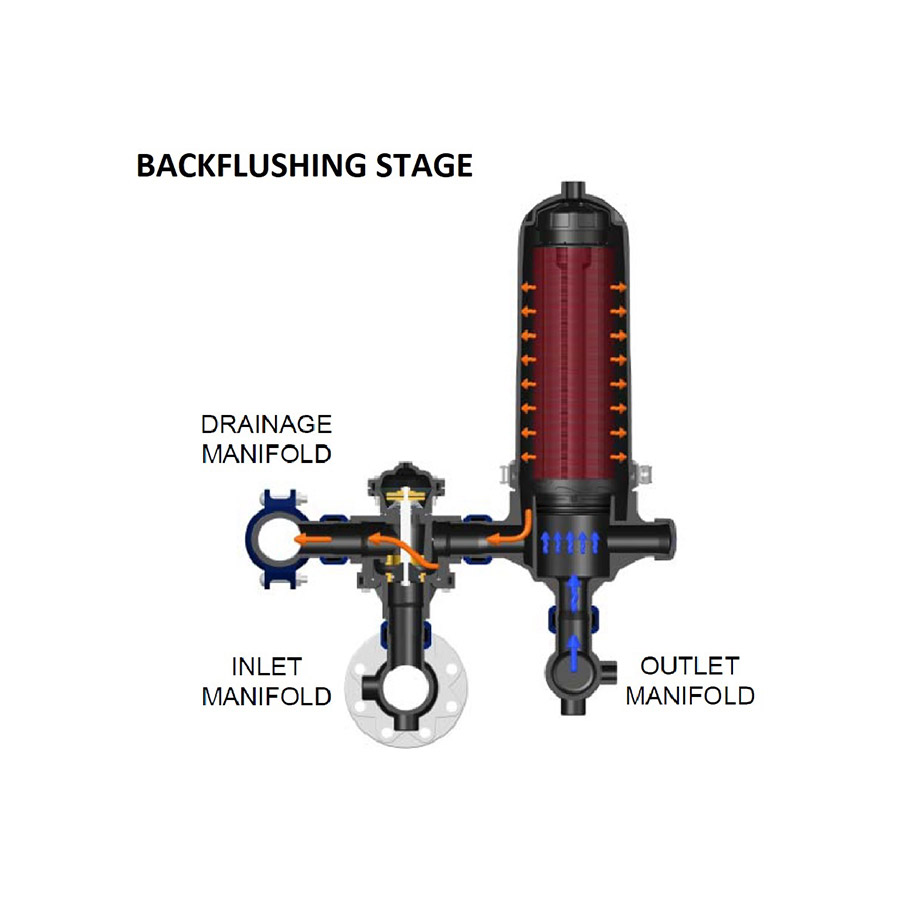

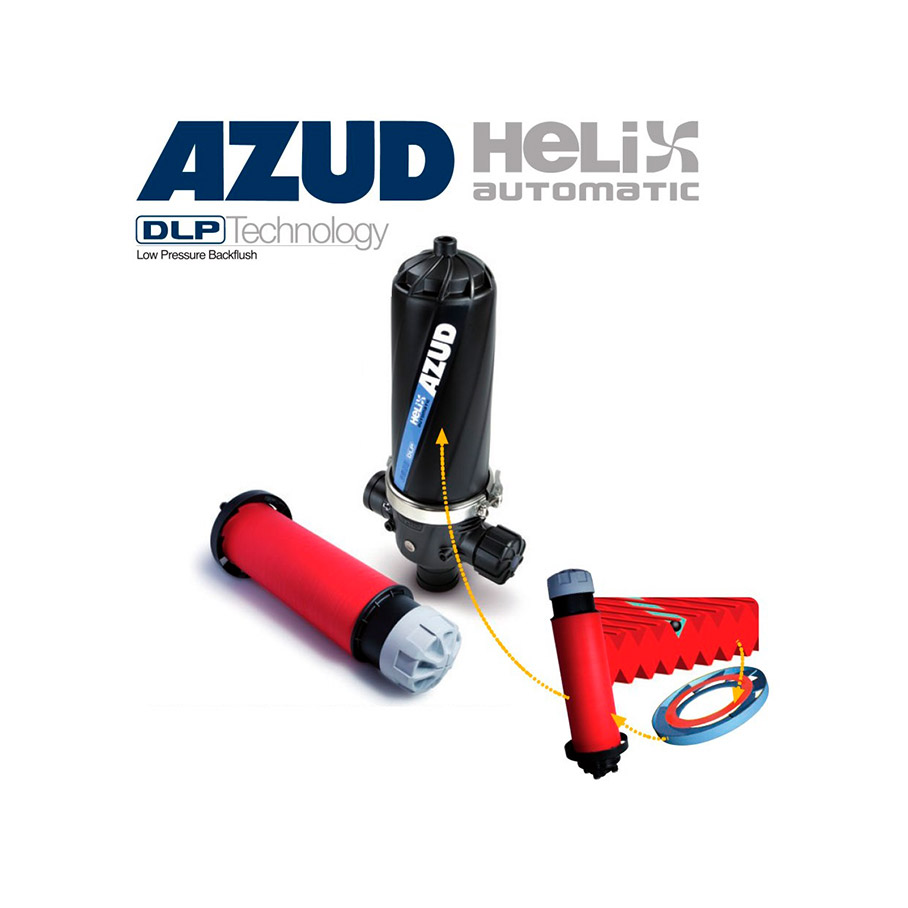

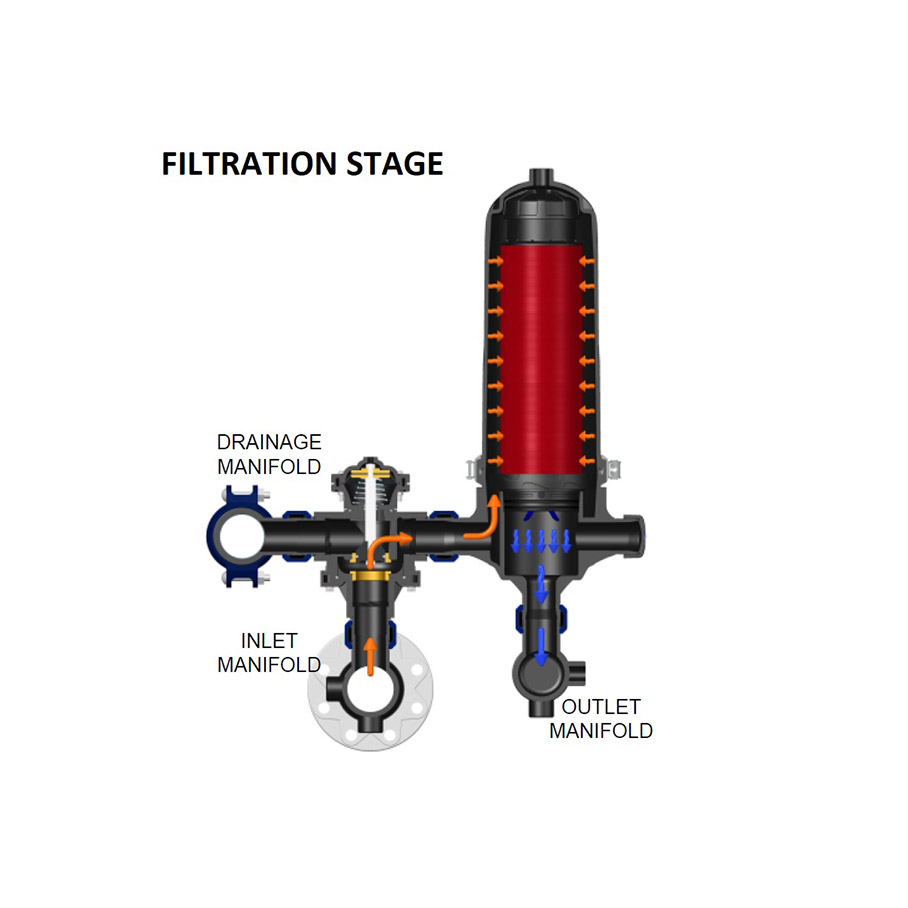

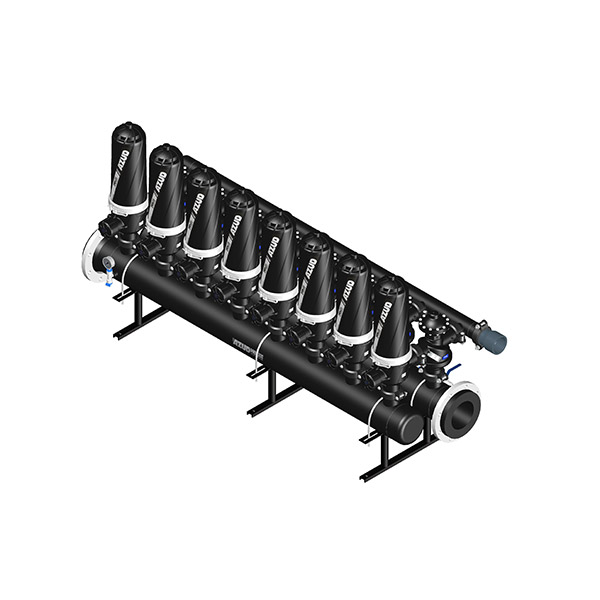

Self-cleaning disc filtration equipment composed by 2 to 8 filters AZUD HELIX AUTOMATIC Ø3″ with discs AZUD MG/WS, which perform an in-depth 3D filtration, installed in-line on Ø4″- 8″ inlet/outlet manifolds. Includes Ø2″ backwash valves 3-way membrane type and the innovative DLP TECHNOLOGY, that enable the sequential low-pressure backwashing of each filter using filtered water from the rest of filters of the equipment, while continues the filtered water supply downstream. The patented AZUD HELIX anti-clogging deflector provides a reliable filtration thanks to an effect of centrifugal separation, with less backwash frequency and less water and energy consumption. Smart, compact and modular plug&play solution, made of technical thermoplastics, increases the shelf life of the installation providing a long-term operation with minimum operational costs and less maintenance downtime.
Technical Specifications
| Filter Type | Helix automatic disk filter (self-cleaning system) |
|---|---|
| Num of filter | 2-8 filters Ø3” (rPA) |
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 10 bar (145 psi) Min: 0.8 bar (11.6 psi) |
| Min. flushing pressure | 1.5 bar (22 psi) |
| Min. backwash flow | 2.5 l/s (39 gpm) per filter |
| Backwash duration | 15 – 25 s per filter |
| PH | 4 – 11 |
| Water temperature | ≤ 60 ℃ (140 ℉) |

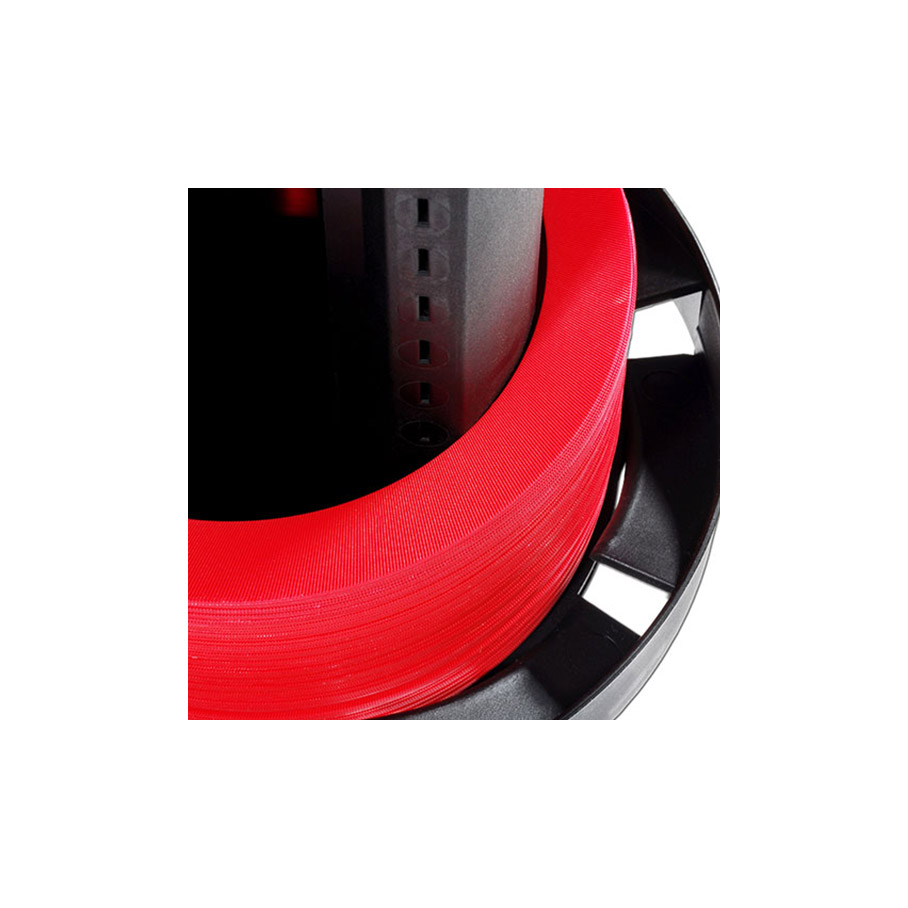

| Filtration degrees | MG disks : 400 – 200 – 130 – 100 (micron), WS disks : 130 – 100 (micron) |
| Connections type | Flange ANSI B16.5 – Flange DIN 2576 – Grooved |
Other Features
Hydraulic command (H)
1 x 3” Diaphragm 3-way backwash valve for each filter – Hydraulic command (H)
Body: rPA – Shaft: SS 303 – Seat: SS 304 – Spring: SS 302
Inlet/Outlet HDPE manifolds: Ø 4”-8” (110-200 mm) – Flange/Grooved
Drainage HDPE manifold: Ø3” (90 mm) – Grooved/PVC (Glue)
¼” BSP glycerine manometer male thread. bar/psi double scale (0-10 bar / 0-145 psi). One manometer per filter, plus one more installed on the outlet manifold.
To view the filter specifications, refer to the technical specifications table of HELIX AUTOMATIC FT DLP series.
| Model | Num. of filter | Filtration Area (cm2) | Connections Inlet/Outlet | Max. flow rate m3/h (gpm) - 130 micron | Dimensions -L – W – H (mm) |
|---|---|---|---|---|---|
| FT302 | 2 filter Ø3” | 3240 | Ø4” | 64 (281) | 745 – 785 – 1160 |
| FT303 | 3 filter Ø3” | 4860 | Ø4” | 70 (295) | 990 – 785 – 1160 |
| FT304 | 4 filter Ø3” | 6480 | Ø6” | 120 (528) | 1220 – 785 – 1210 |
| FT305 | 5 filter Ø3” | 8100 | Ø6” | 120 (528) | 1560 – 785 – 1210 |
| FT306 | 6 filter Ø3” | 9720 | Ø6” Ø8” | 120 (528) 192 (739) | 1835 – 785 – 1210 1860 – 785 – 1250 |
| FT307 | 7 filter Ø3” | 11340 | Ø8” | 220 (968) | 2135 – 785 – 1250 |

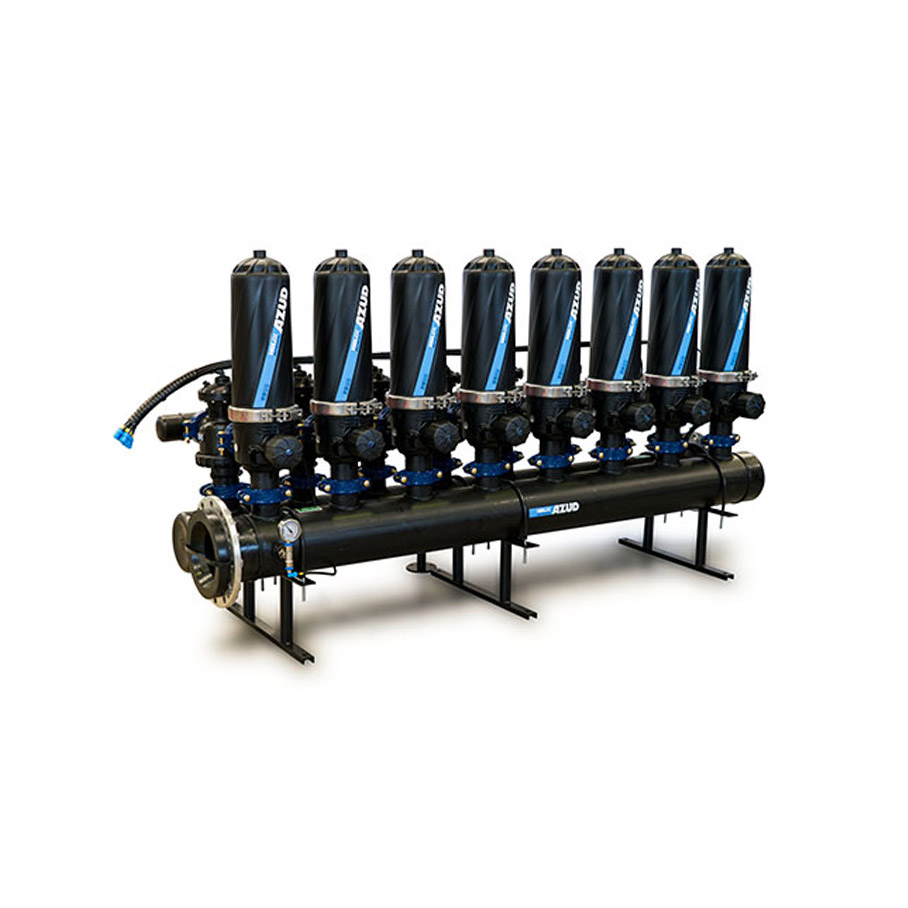

| FT308 | 8 filter Ø3” | 12960 | Ø8” | 220 (968) | 2410 – 785 – 1250 |
- 2-3 filter packages come with FBC103 unit control.
- 4-8 filter packages come with FBC112 unit control.
- It is possible for the manufacturer to change the technical specifications without prior notice.

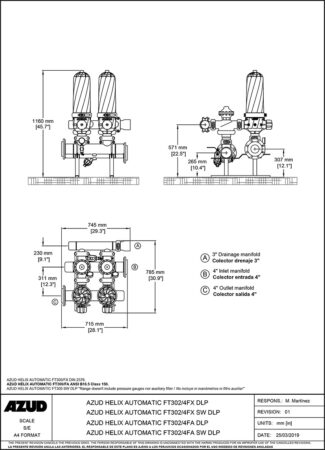

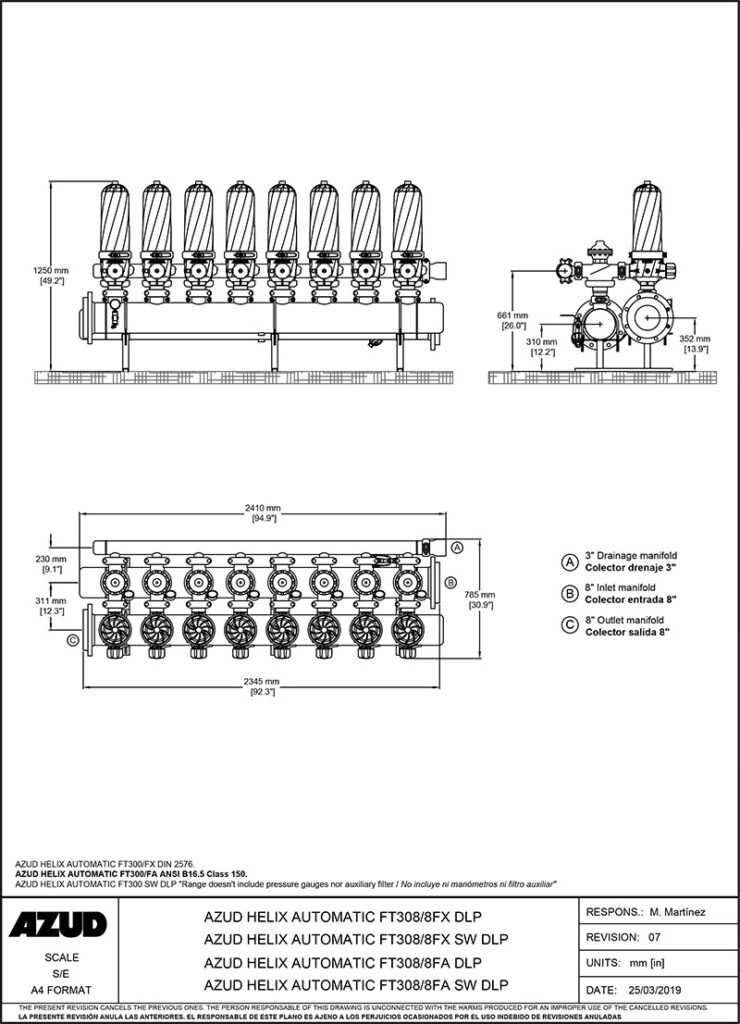

Technical drawings
