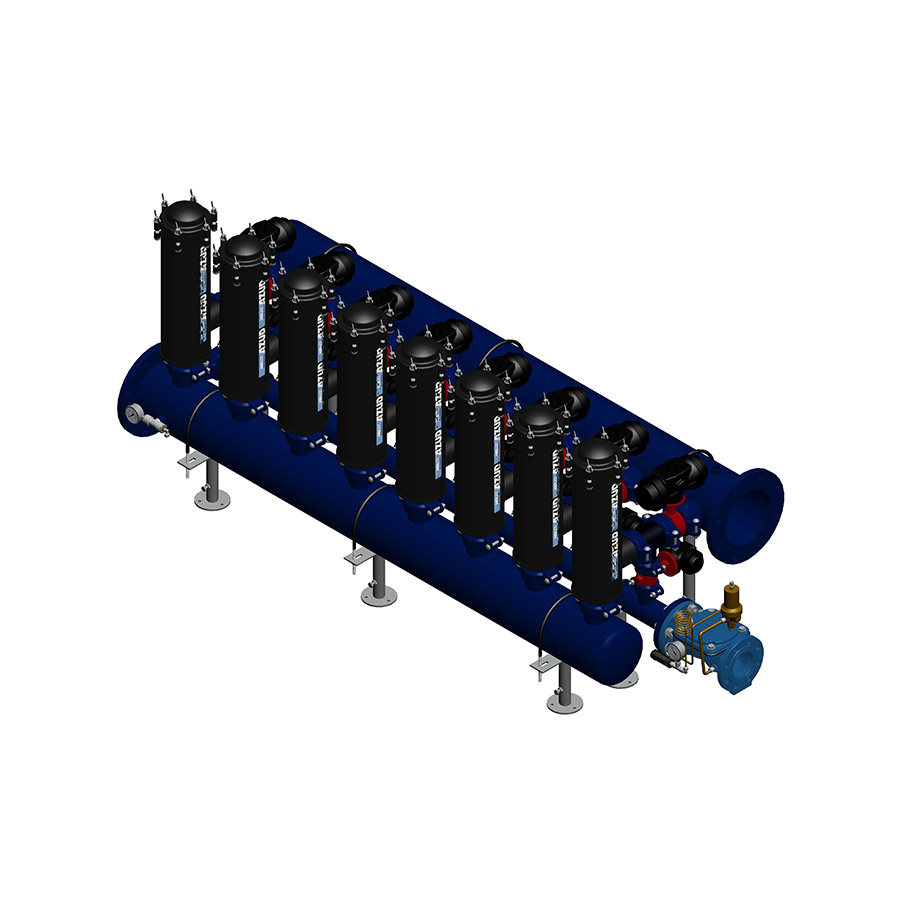

AZUD HELIX AUTOMATIC FT300 HP DLP
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| High working pressure series (16 bar) suitable for low salinity water | FT300 HP DLP |
This series is designed and manufactured for high working pressure. In these packages, 3-inch cast iron filters made by AZUD are used, which provide the user with the ability to perform filtration operations up to 16 bar pressure. Butterfly type 2” with spring return pneumatic actuator (1unit / filter) and butterfly type 3” with double acting pneumatic actuator (1 unit / filter)
An oil “glycerin” (glycerin) “1.4” with two scales bar / psi (psi 0-232 / bar 0-16) installed in the control panel is available.
These packages can be ordered from 2 to 8 filters.
Technical Specifications
| Filter Type | Helix automatic disk filter for high pressure PN16 (self-cleaning system) |
|---|---|
| Num of filter | 2-8 filters Ø3” (epoxy-polyester coated carbon steel) |
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 16 bar (232 psi), Min: 0.8 bar (11.6 psi) |
| Connections type | Flange ANSI B16.5, Flange DIN 2576 |
Other Features
Pneumatic command (PN)
1 x Ø3” Butterfly valve with spring return pneumatic actuator and 1 x Ø3” Butterfly valve with double acting pneumatic actuator per filter for backwash
Body: Cast iron – Seal: EPDM* rubber – Disk: Cast iron / SS 316L
Inlet/Outlet manifolds: Carbon steel with epoxy-polyester coating. PN16
– Flange: Carbon steel with epoxy-polyester coating
Drainage manifold: Ø3” (90 mm) carbon steel with epoxy-polyester coating – Flange: Carbon steel with epoxy-polyester coating
¼” BSP glycerine manometer male thread. bar/psi double scale (0-16 bar / 0-232 psi)
This type of rubber has good chemical resistance to acids and bases and very high resistance to ozone. Highlights of EPDM include high elasticity, good thermal stability and very low density, and very good electrical resistance.
- Filtration packages come with FBC112 HP unit control.
- It is possible for the manufacturer to change the technical specifications without prior notice.
