AZUD HELIX SYSTEM FT
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| Standard series for low salinity water | FT |
| Special series for seawater and high salinity water | FT SW |

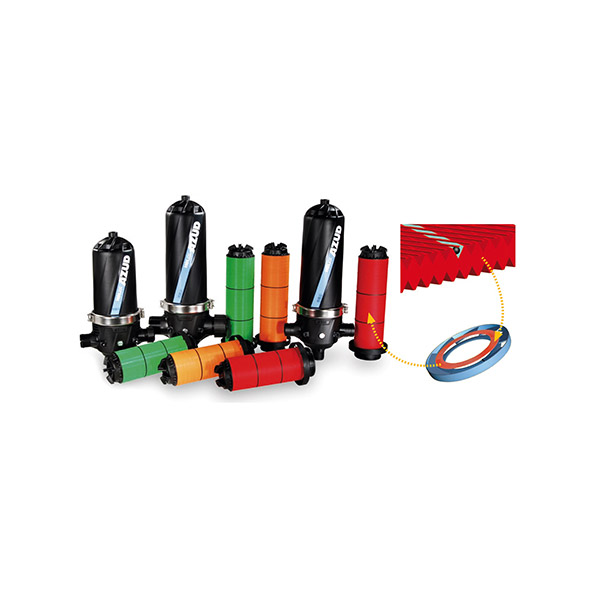

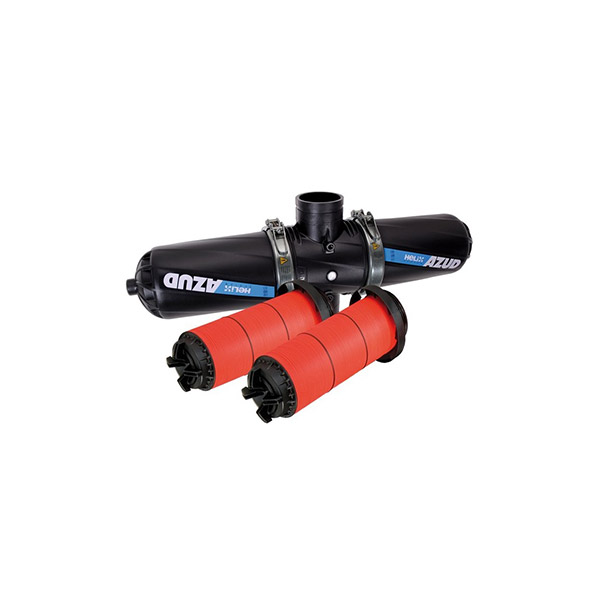

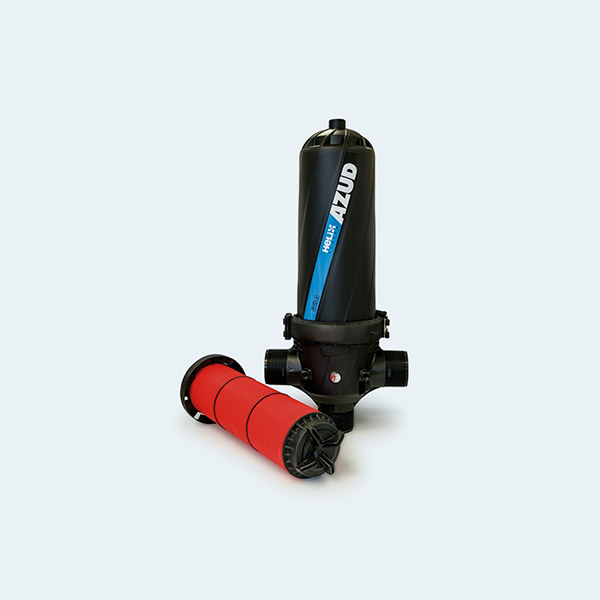

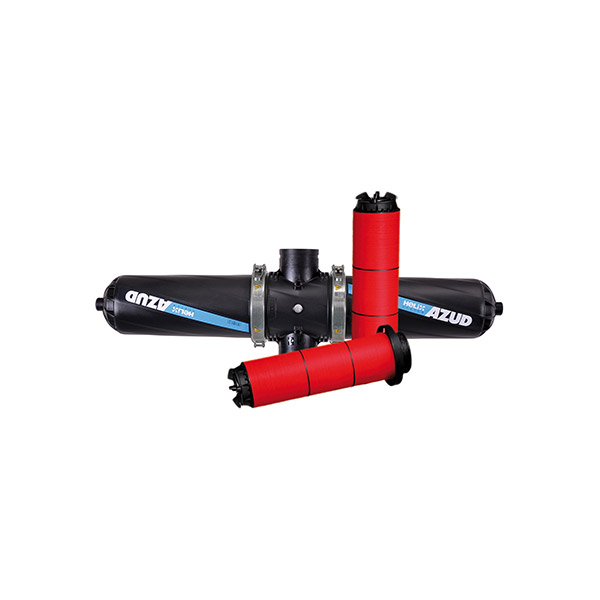

Manual disc AZUD HELIX SYSTEM FT filter available in Ø2″, Ø3″, Ø4″ and Ø6″. AZUD patents, developments and manufacturing quality control guarantee an excellent filtration quality by optimizing operational costs of the installation where it is integrated. Thermoplastic materials used in the manufacture offer an extraordinary resistance and lifespan of all the components of the equipment, minimizing the tasks of inspection and maintenance, which are carried out easily and with no tools.
Technical Specifications
| Filter Type | Helix Disk Filter |
|---|---|
| TDS range | Standard series: Low salinity water (TDS < 6000 mg/l), SW series: High salinity water and sea water (TDS: 6000 – 55000 mg/l) |
| Working pressure | Max: 10 bar (145 psi) (6 bar (87 psi) for FT CL only), Min: 0.8 bar (11.6 psi) |
| PH | 4 – 11 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | 1000 – 500 – 300 – 200 – 125 – 100 – 80 – 50 (micron) |
| Connections type | BSP – NPT – Grooved |
Other Features

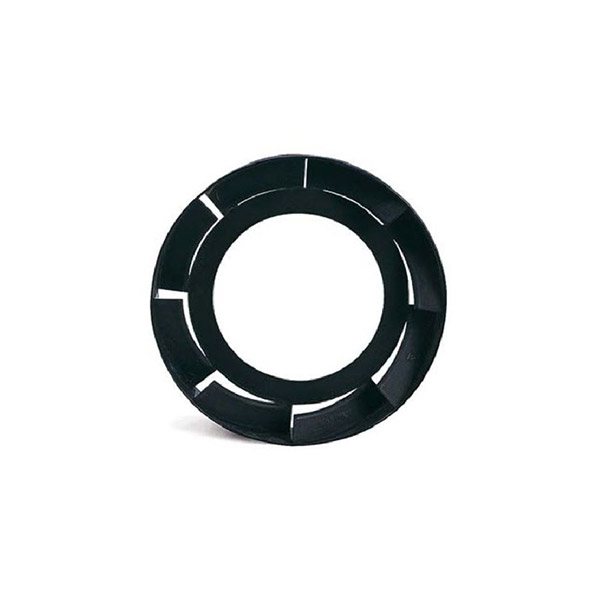

Materials used in construction
| Filter parts | FT | FT SW | FT CL | FT DW |
|---|---|---|---|---|
| MG disc | PP | PP | PP | PP FG |
| WS disc | HDPE | HDPE | HDPE | HDPE |
| Disk support | rPP | rPP | rPP | rPP FG |
| Base/Lid | rPA | rPA | rPA | rPA FG |
| Clamp | SS 304 | SS 316L | SS 304 | SS 316L |
| Sealing o-rings | NBR | NBR | NBR | NBR |
| Model | Filtration area (cm2) | Q max -130 micron m3/h (gpm) | Connection | Dimensions L-W-H (mm) |
|---|---|---|---|---|
| 2” | 1198 | 30 (132) | 2” | 310 – 212 – 595 |
| 2” SUPER | 1699 | 30 (132) | 2” | 310 – 212 – 720 |
| 3” COMPACT | 1198 | 50 (220) | Ø3” | 336 – 212 – 610 |
| Ø3” | 1699 | 50 (220) | Ø3” | 336 – 212 – 735 |
| 4” | 2396 | 70 (308) | 4” | 341 – 212 – 950 |
| 4” SUPER | 3398 | 100 (440) | 4” | 341 – 212 – 1200 |
| 6” | 3398 | 100 (440) | Ø6” | 531 – 212 – 1200 |
- It is possible for the manufacturer to change the technical specifications without prior notice.

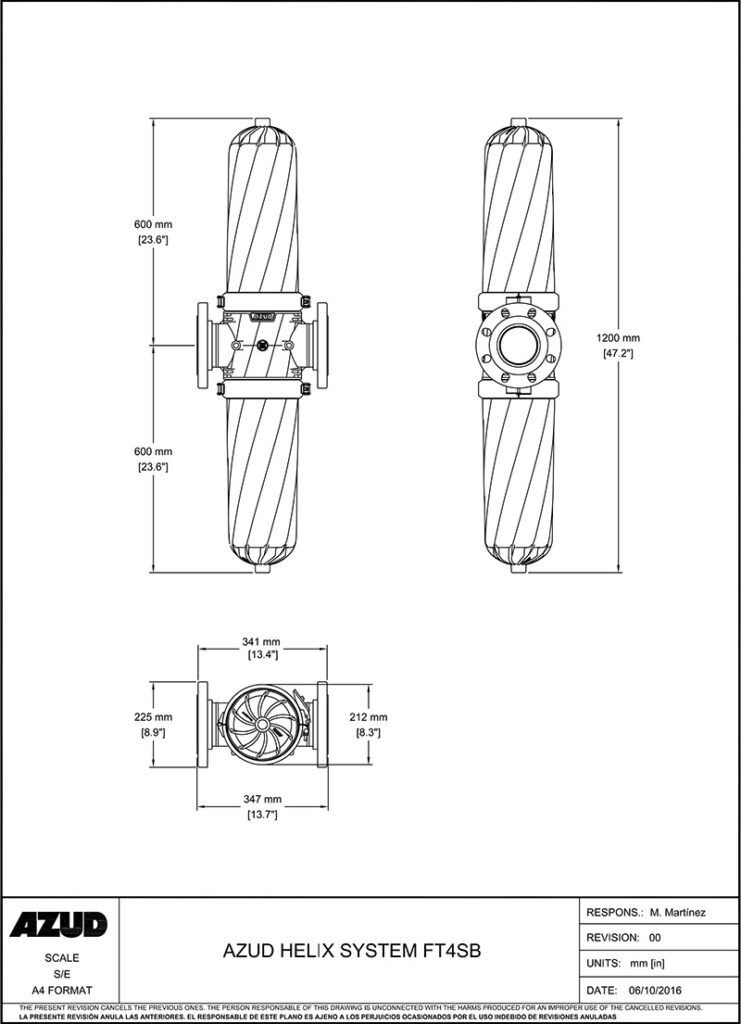

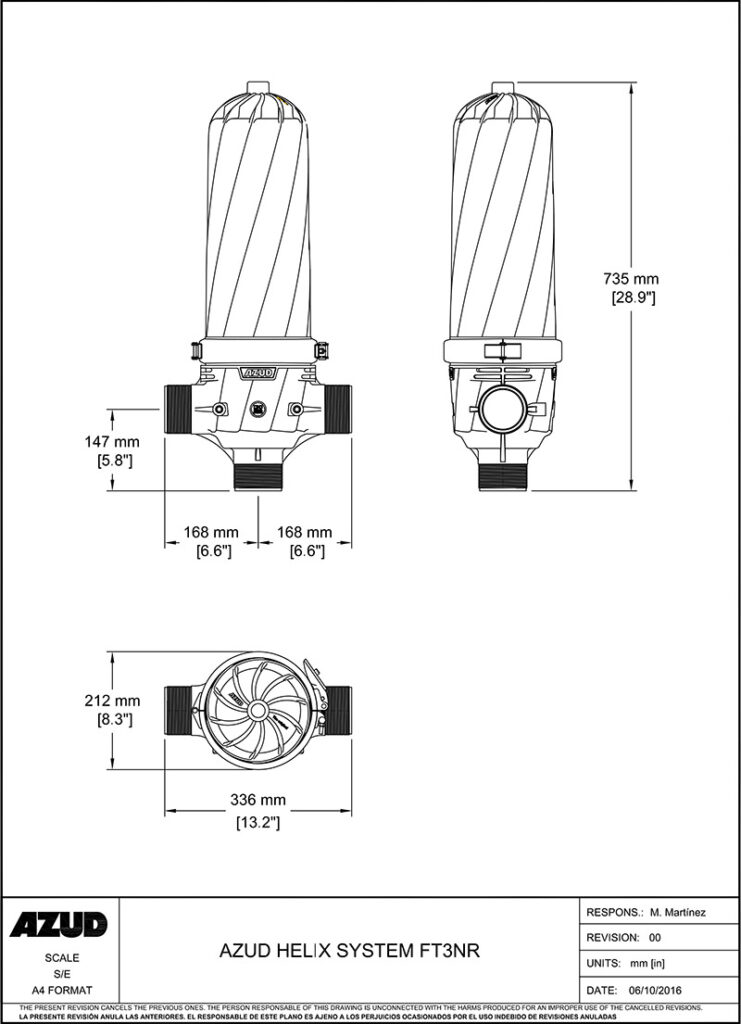

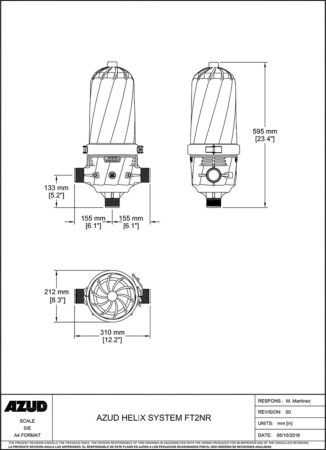

Technical drawings
