AZUD LUXON LXE SW
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| Special series for seawater and high salinity water | LUXON LXE SW |

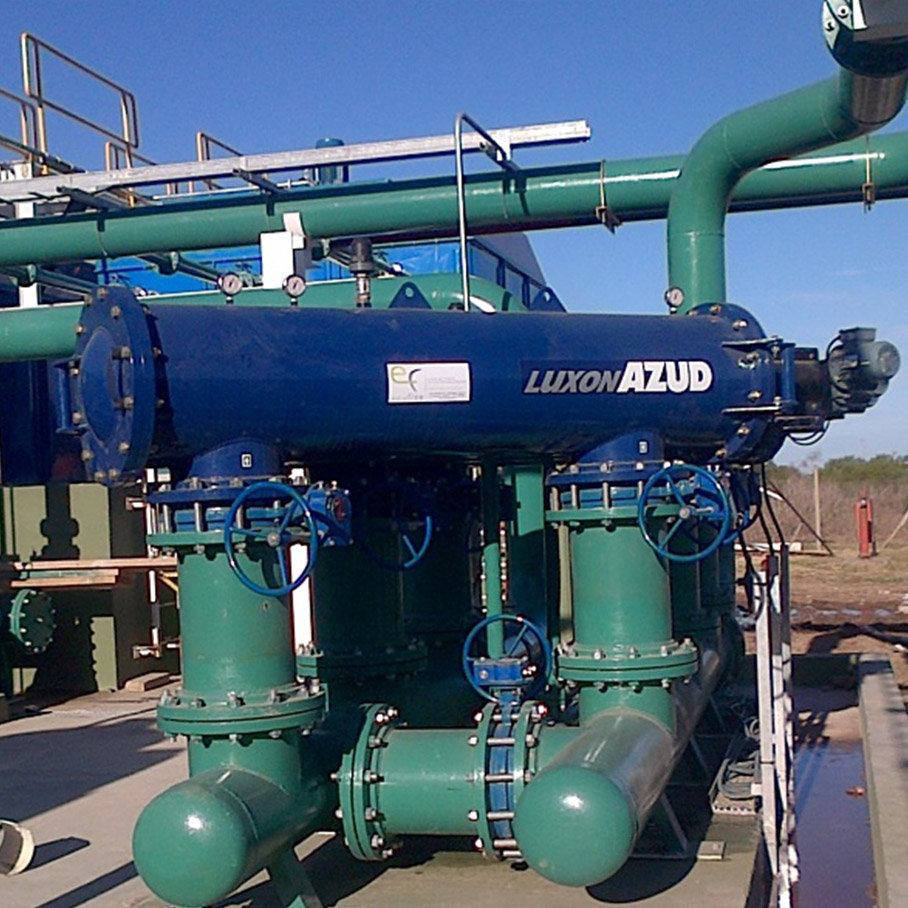

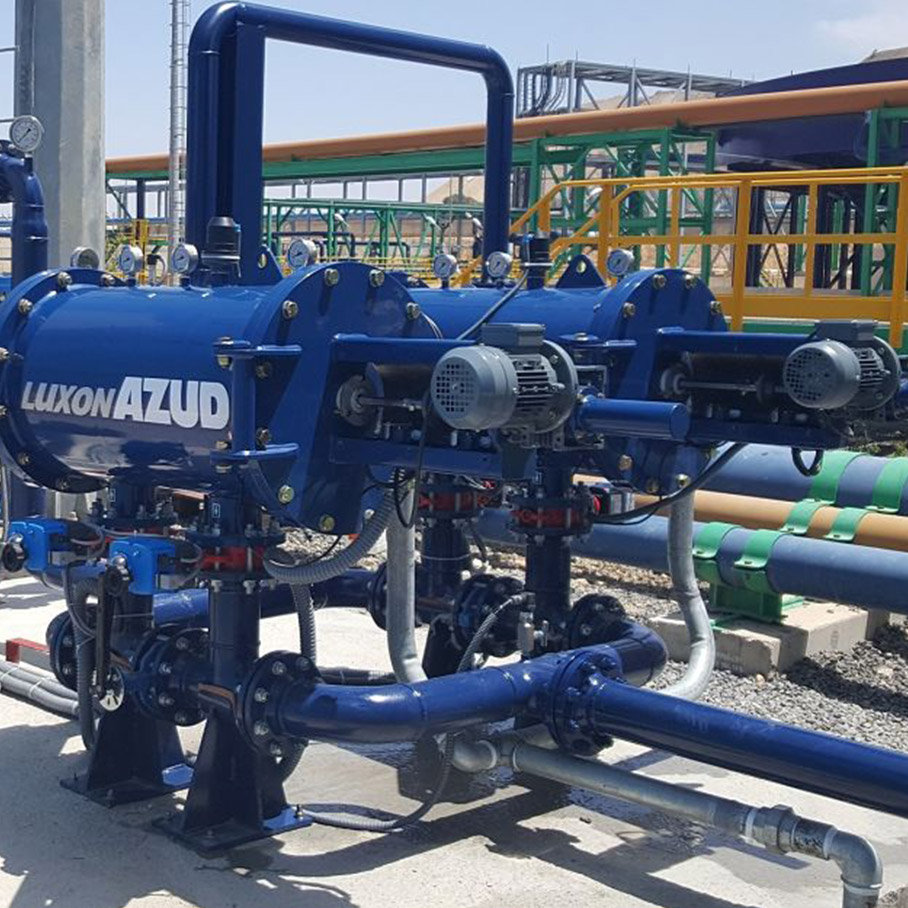

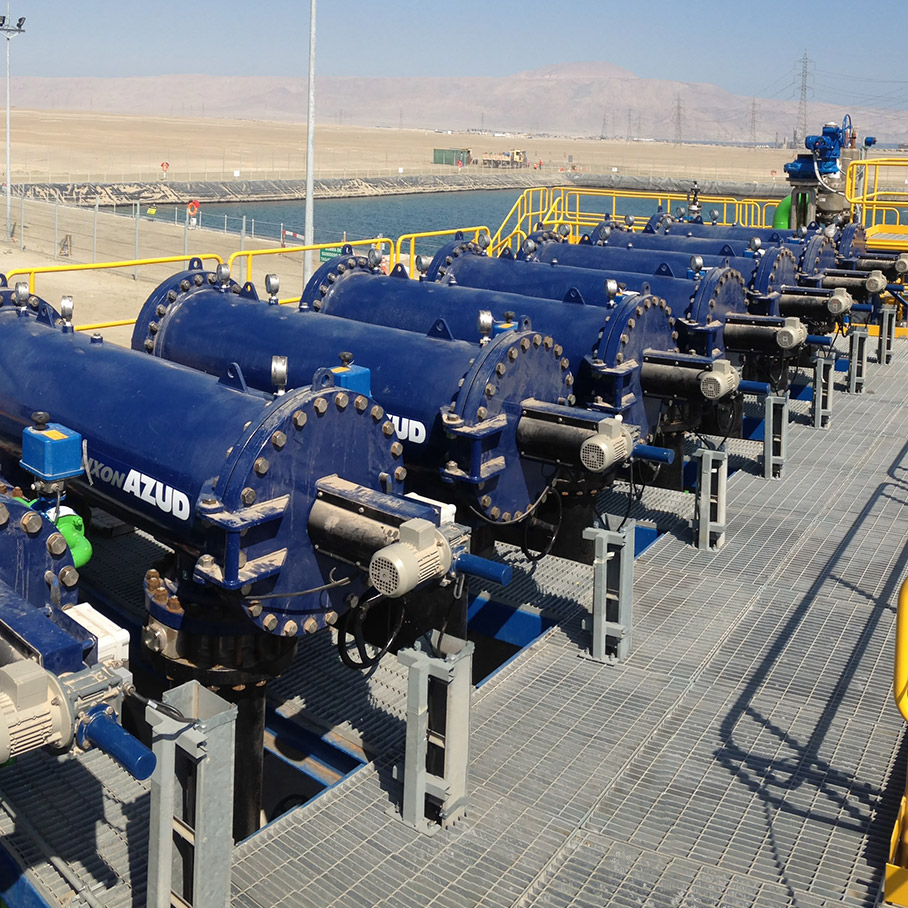

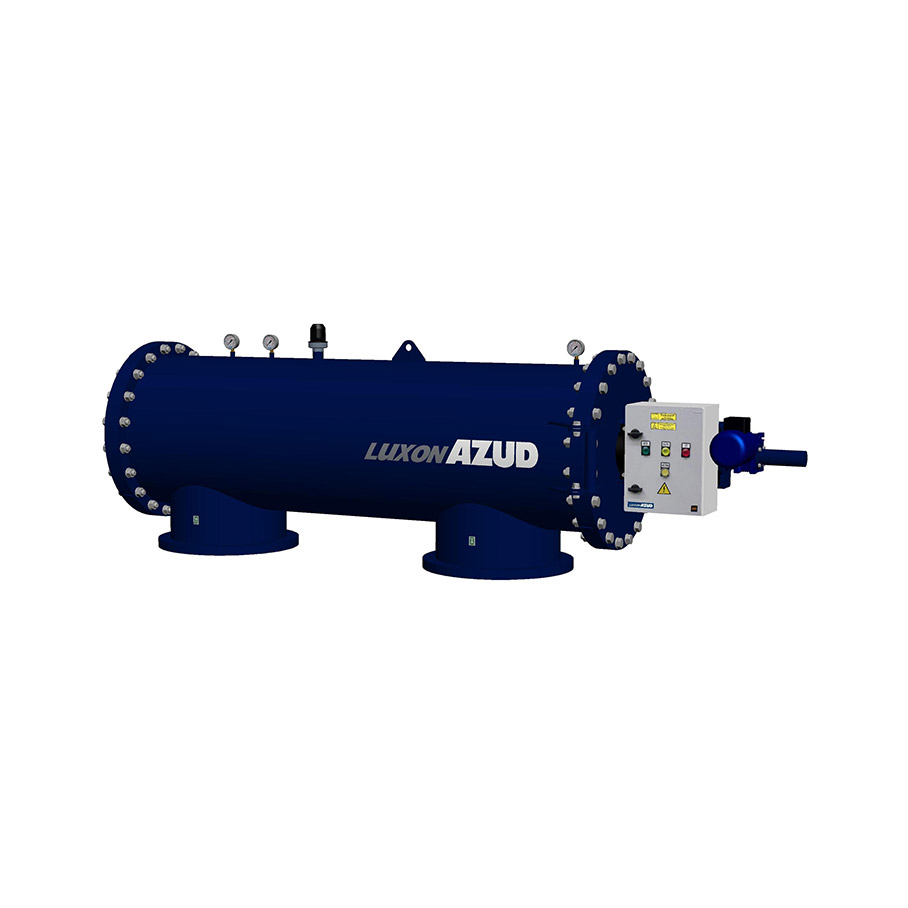

Automatic electric screen filters suitable for all applications, and available in a wide range of micron sizes, all with the same high-quality guarantee of AZUD.
Filtration surface of up to 21300 cm² and a maximum flow (for 125 micron) of up to 1065 m³/h. The cleaning mechanism includes suction nozzles.
TECHNOLOGY
AZUD LUXON filters continue to supply filtered water without interruption during the flushing cycle. The water flows through the inlet and enters through the pre-filter to the inside of the filter element. The water then passes through the screen, and the particles are retained on the inside of the filter element (screen). The filtered water then flows out through the outlet. When the pressure differential from inlet to outlet of the filter reaches the pre-selected level, the flushing cycle starts (ΔP). A hydraulic valve opens in the drain port, which initiates suction in the inner nozzles. This, along with the helical movement up and down the screen sucks the captured particles into the waste flow, and this is expelled out the drain port. The length of the flush cycle e is pre-determined by the control unit. When the cycle is complete the flush valve closes and the flushing ends. The flushing process uses a minimal amount of water.
Technical Specifications
| Filter Type | Automatic screen filter (self-cleaning system) |
|---|---|
| TDS range | TDS: mg/l 55000 – 6000 |
| Working pressure | Max: 10 bar (145 psi) Min: 0.8 bar (11.6 psi) |
| Min. flushing pressure | 2 bar (29 psi) |
| PH | 5 – 9 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | 50 – 80 – 100 – 125 – 200 – 300 – 500 – 1000 (میکرون) |
| Connections type | Flange ANSI B16.5, Flange DIN 2576 |
Other Features
Command : Electric motor command
Axis position : Horizontal
Connection configuration : Parallel
Body : Carbon steel with glass flake internal coating (Rubber Lined internal coating optional) and epoxy-polyester external coating. PN10
Cartridge : SS super duplex weave wire screen with SS super duplex support
Flushing Device : Motor, gearbox and SS super duplex scanner with PVC or SS super duplex suction nozzles
Inlet/Outlet connections : Ø 3”-20” (90-500 mm) – Flange (DIN 2576 / ANSI B16.5)
Drainage valve & connection : 2-ways ball valve with electric actuator – connection: flange – Ø2” (50 mm) of reinforced polypropylene
Exhaust valve : Diaphragm 2-way valve
Manometer : 3 x ¼” BSP glycerine manometer male thread. bar/psi double scale (0-10 bar / 0-145 psi)
Control unit : AZUD FBC
Power supply : 380 V AC Three-phase / 220 V AC single-phase / 110 V AC single-phase.
| Model | Filtration Area (cm2) | Connections Inlet/Outlet | Max. flow rate m3/h (gpm) - 125 micron | Max. flow rate m3/h (gpm) - 80 micron | Flushing flow rate x duration | Weight (empty) kg | Dimensions - L – W – H (mm) |
|---|---|---|---|---|---|---|---|
| SS super duplex screen with SS super duplex support | |||||||
| LXE 2700 S/3 SW LXE 2700 S/4 SW LXE 2700 S/6 SW | 2700 | Ø3” Ø4” Ø6” | 50 (220) 90 (396) 135 (594) | 50 (220) 81 (357) 81 (357) | 1.4 l/s (22 gpm) x 25 s | 260 | 1715 – 765 – 700 |
| LXE 5400 S/4 SW LXE 5400 S/6 SW LXE 5400 S/8 SW | 5400 | Ø4” Ø6” Ø8” | 90 (396) 170 (748) 270 (1189) | 90 (396) 162 (713) 162 (713) | 2.8 l/s (44 gpm) x 25 s | 310 | 2140 – 765 – 700 |
| LXE 8000 S/6 SW LXE 8000 S/8 SW LXE 8000 S/10 SW LXE 8000 S/12 SW | 8000 | Ø6” Ø8” Ø10” Ø12” | 170 (749) 300 (1321) 400 (1761) 400 (1761) | 170 (749) 240 (1057) 240 (1057) 240 (1057) | 4.5 l/s (71 gpm) x 25 s | 400 | 2415 – 765 – 700 |
| LXE 10600 S/8 SW LXE 10600 S/10 SW LXE 10600 S/12 SW LXE 10600 S/14 SW | 10600 | Ø8” Ø10” Ø12” Ø14” | 300 (1321) 500 (2202) 530 (2334) 530 (2334) | 300 (1321) 318 (1400) 318 (1400) 318 (1400) | 5.8 l/s (92 gpm) x 25 s | 450 | 2690 – 765 – 700 |
| LXE 13200 S/8 SW LXE 13200 S/10 SW LXE 13200 S/12 SW LXE 13200 S/14 SW | 13200 | Ø8” Ø10” Ø12” Ø14” | 300 (1321) 500 (2202) 660 (2906) 660 (2906) | 300 (1321) 396 (1744) 396 (1744) 396 (1744) | 7.2 l/s (114 gpm) x 25 s | 500 | 2965 – 765 – 700 |
| LXE 16500 S/8 SW LXE 16500 S/10 SW LXE 16500 S/12 SW LXE 16500 S/14 SW LXE 16500 S/16 SW | 16500 | Ø8” Ø10” Ø12” Ø14” Ø16” | 300 (1321) 500 (2202) 700 (3082) 825 (3633) 825 (3633) | 300 (1321) 495 (2180) 495 (2180) 495 (2180) 495 (2180) | 7.2 l/s (114 gpm) x 25 s | 700 | 2710 – 975 – 925 |
| LXE 21300 S/10 SW LXE 21300 S/12 SW LXE 21300 S/14 SW LXE 21300 S/16 SW LXE 21300 S/18 SW LXE 21300 S/20 SW | 21300 | Ø10” Ø12” Ø14” Ø16” Ø18” Ø20” | 500 (2202) 700 (3082) 850 (3743) 1065 (4690) 1065 (4690) 1065 (4690) | 500 (2202) 639 (2814) 639 (2814) 639 (2814) 639 (2814) 639 (2814) | 7.2 l/s (114 gpm) x 25 s | 800 | 2985 – 975 – 925 |
- Maximum flow for good quality water.
- It is possible for the manufacturer to change the technical specifications without prior notice.

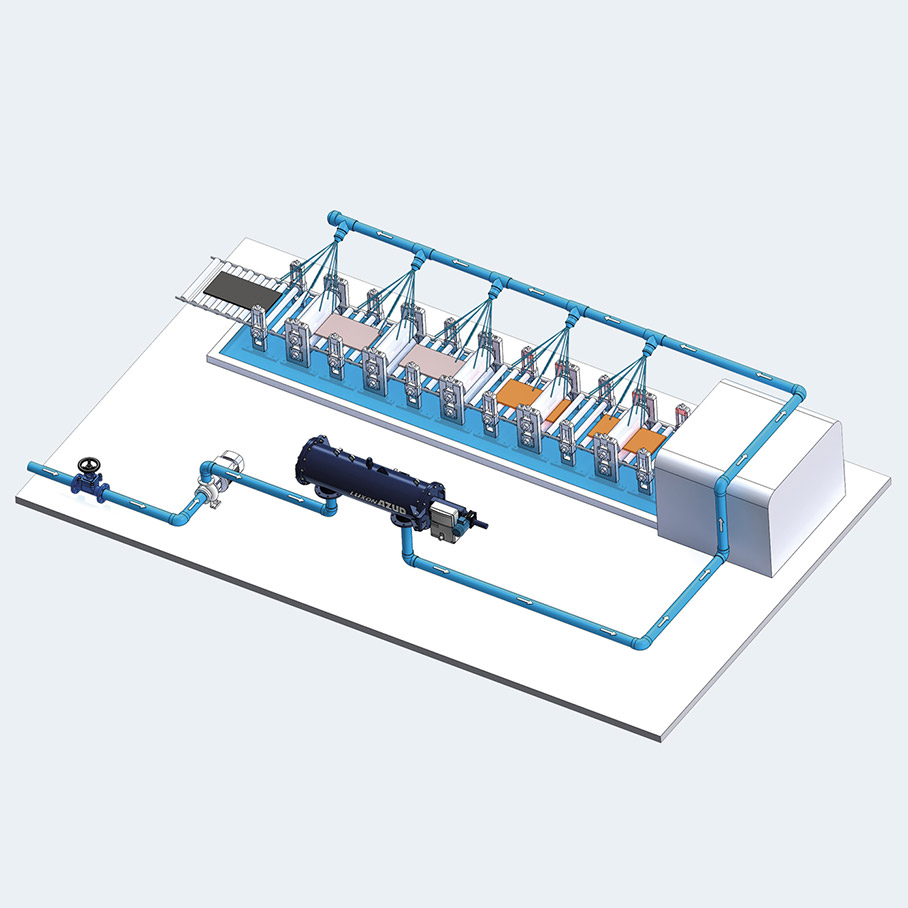

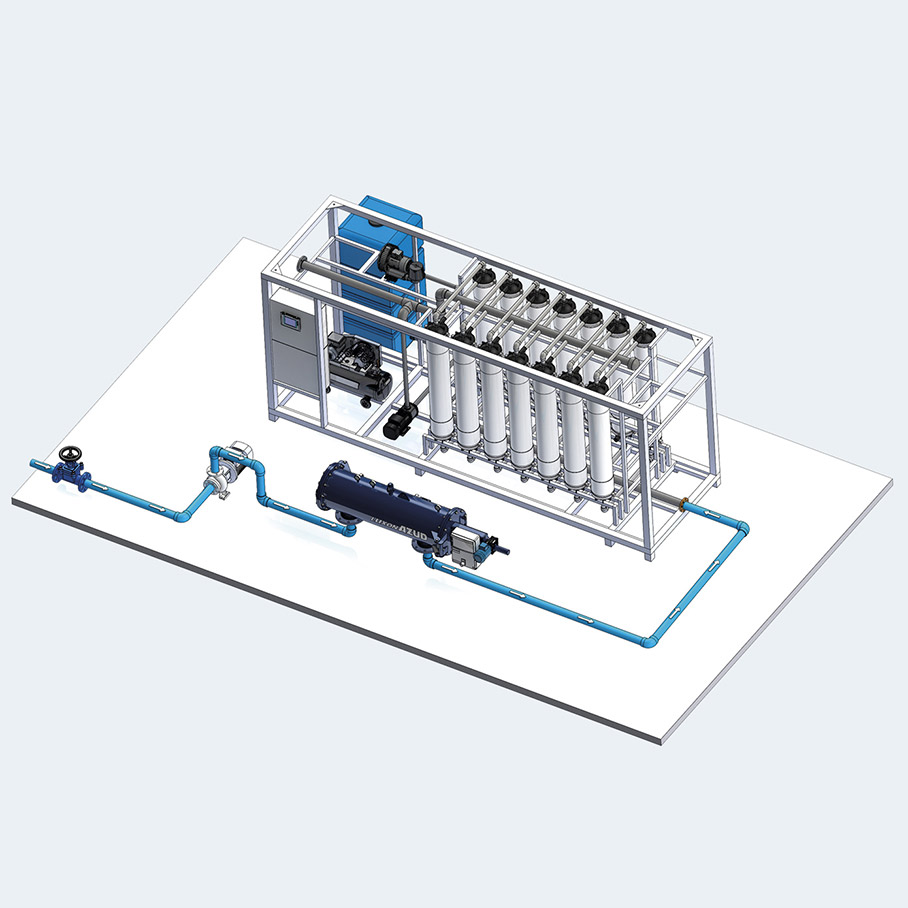

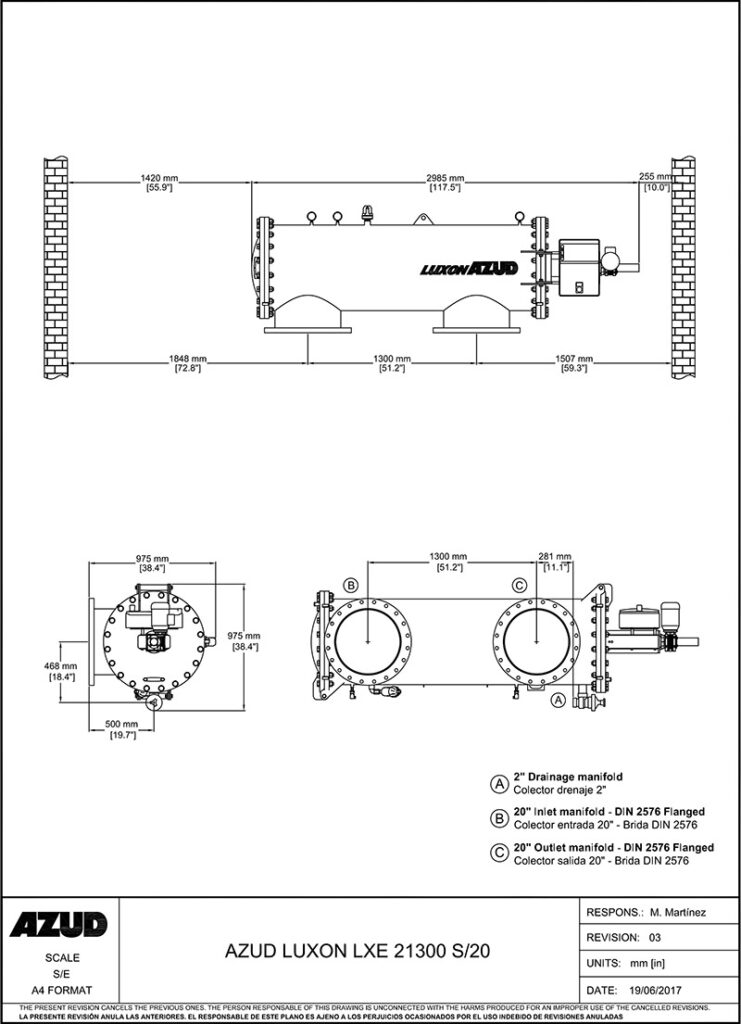

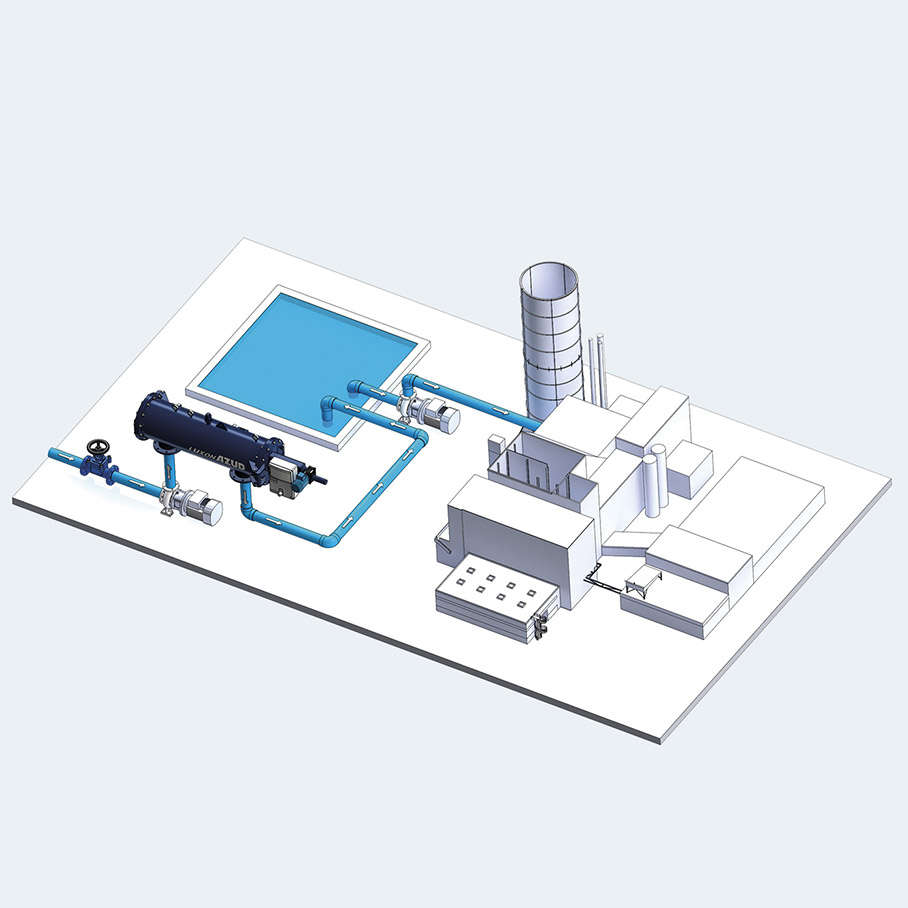

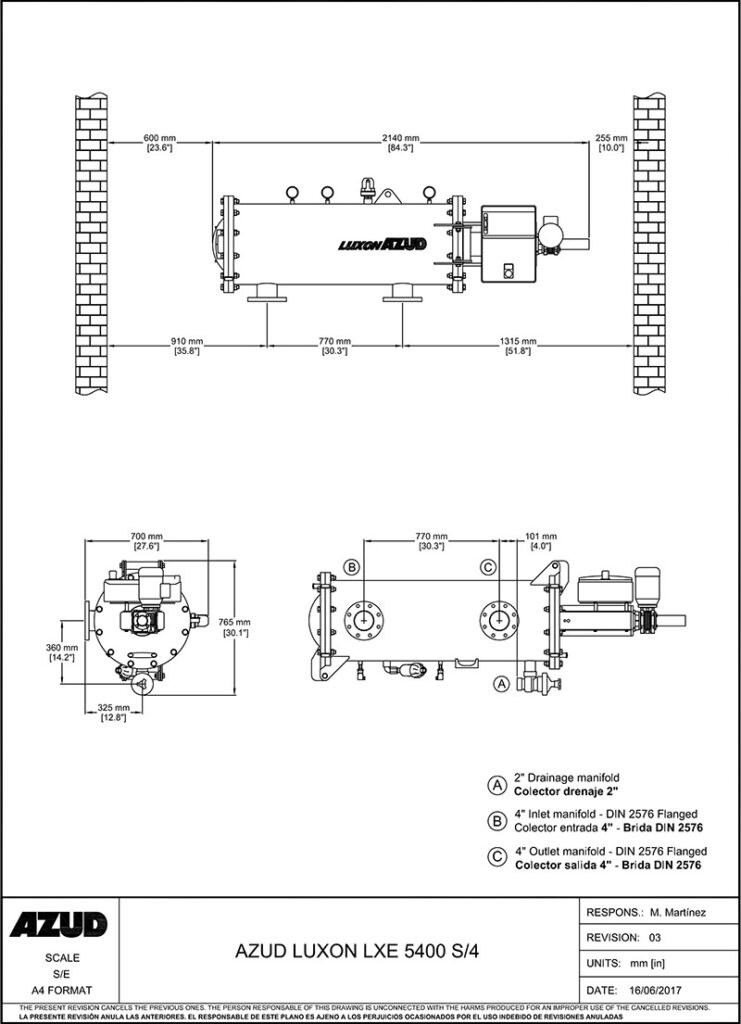

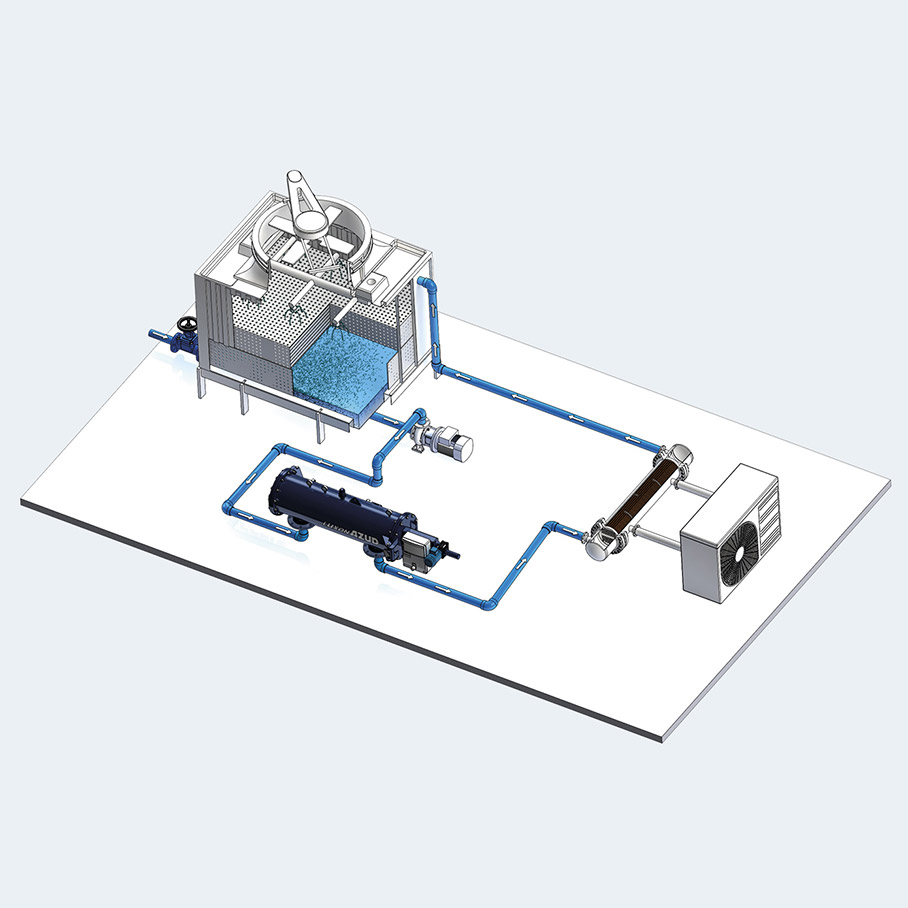

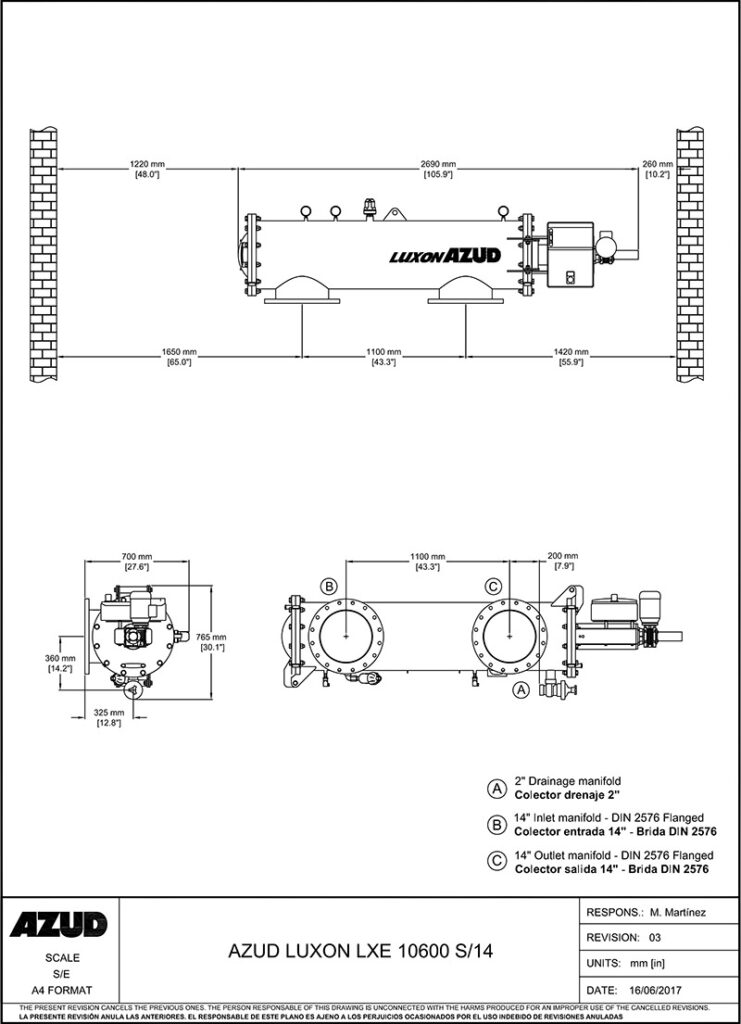

Technical drawings
