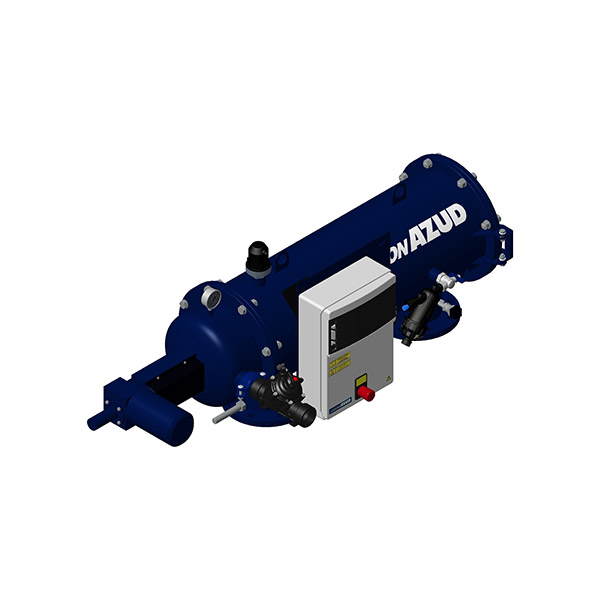

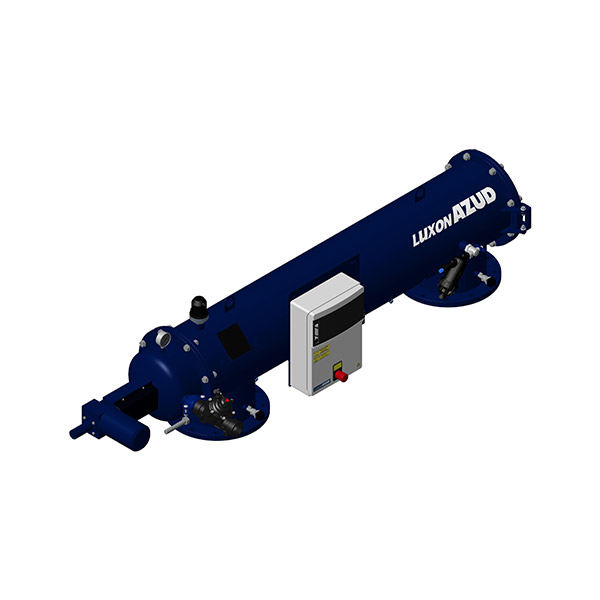

AZUD LUXON MFE
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| Standard series for low salinity water | LUXON MFE |
Automatic electric screen filters suitable for all applications, and available in a wide range of micron sizes, all with the same high-quality guarantee of AZUD.
TECHNOLOGY
AZUD LUXON filters continue to supply filtered water without interruption during the flushing cycle. The water flows through the inlet and enters through the pre-filter to the inside of the filter element. The water then passes through the screen, and the particles are retained on the inside of the filter element (screen). The filtered water then flows out through the outlet. When the pressure differential from inlet to outlet of the filter reaches the pre-selected level, the flushing cycle starts(ΔP). A hydraulic valve opens in the drain port, which initiates suction in the inner nozzles. This, along with the helical movement up and down the screen sucks the captured particles into the waste flow, and this is expelled out the drain port. The length of the flush cycle e is pre-determined by the control unit. When the cycle is complete the flush valve closes and the flushing ends. The flushing process uses a minimal amount of water.
Technical Specifications
| Filter Type | Automatic screen filter (self-cleaning system) |
|---|---|
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 10 bar (145 psi) Min: 0.8 bar (11.6 psi) |
| Min. flushing pressure | 2 bar (29 psi) |
| PH | 5 – 9 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | 1000 – 500 – 300 – 200 – 125 – 100 – 80 – 50 (micron) |
| Connections type | Flange ANSI B16.5, Flange DIN 2576 |
Other Features
Command : Electric motor command
Axis position : Horizontal
Connection configuration : Parallel
Body : Carbon steel with internal and external epoxy-polyester coating. PN10
Cartridge : SS 316L weave wire screen with molded PP support
Flushing Device : Motor, gearbox and SS304 scanner with suction nozzles
Inlet/Outlet connections : Ø 4”-12” (110-315 mm) – Flange (DIN 2576 / ANSI B16.5)
Drainage valve connection : Ø2” (50 mm) Grooved / BSP thread of reinforced polyamide – Hydraulic activation
Exhaust valve : Diaphragm 2-way valve
Manometer : ¼” BSP glycerine manometer male thread. bar/psi double scale (0-10 bar / 0-145 psi)
Control unit : AZUD FBC
Power supply : 380 V AC Three-phase / 220 V AC single-phase / 110 V AC single-phase.
| Model | Filtration Area (cm2) | Connections Inlet/Outlet | Max. flow rate m3/h (gpm) - 125 micron | Max. flow rate m3/h (gpm) - 80 micron | Flushing flow rate x duration | Weight (empty) kg | Dimensions -L – W – H (mm) |
|---|---|---|---|---|---|---|---|
| SS 316L screen with Polypropylene molded support | |||||||
| MFE 2400 M/4 MFE 2400 M/6 | 2400 | Ø4” Ø6” | 90 (396) 113 (498) | 67 (295) 67 (295) | 67 (295) 67 (295) | 65 | 1420 – 675 – 625 |
| MFE 4800 M/4 MFE 4800 M/6 MFE 4800 M/8 | 4800 | Ø4” Ø6” Ø8” | 90 (396) 170 (749) 226 (995) | 90 (396) 134 (590) 134 (590) | 6.5 l/s (89 gpm) x 20 s | 80 | 1695 – 675 – 625 |
| MFE 7200 M/6 MFE 7200 M/8 MFE 7200 M/10 | 7200 | Ø6” Ø8” Ø10” | 170 (749) 300 (1321) 338 (1448) | 170 (749) 202 (889) 202 (889) | 4.8 l/s (133 gpm) x 20 s | 100 | 1970 – 675 – 625 |
| MFE 9600 M/8 MFE 9600 M/10 MFE 9600 M/12 | 9600 | Ø8” Ø10” Ø12” | 300 (1321) 451 (1986) 451 (1986) | 269 (1185) 269 (1185) 269 (1185) | 2.11 l/s (178 gpm) x 20 s | 135 | 2245 – 675 – 625 |
| MFE 12000 M/8 MFE 12000 M/10 MFE 12000 M/12 | 12000 | Ø8” Ø10” Ø12” | 300 (1321) 500 (2202) 564 (2483) | 300 (1321) 336 (1480) 336 (1480) | 1/14/s (222 gpm) x 20 s | 165 | 2520 – 675 – 625 |
- Maximum flow for good quality water.
- The weight of the device is listed as approximate.
- It is possible for the manufacturer to change the technical specifications without prior notice.

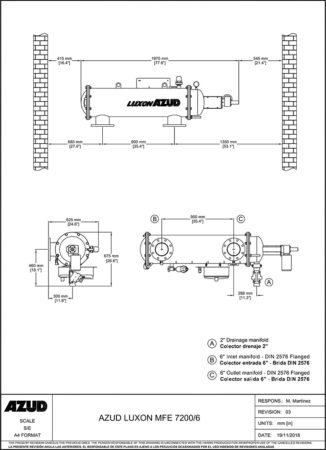

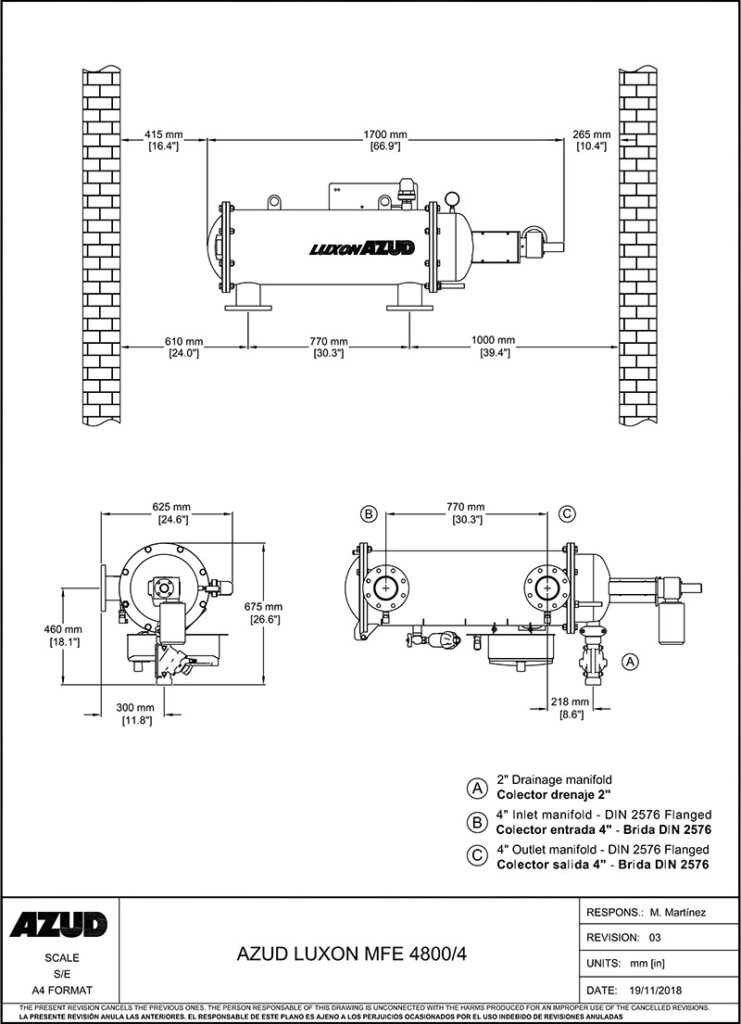

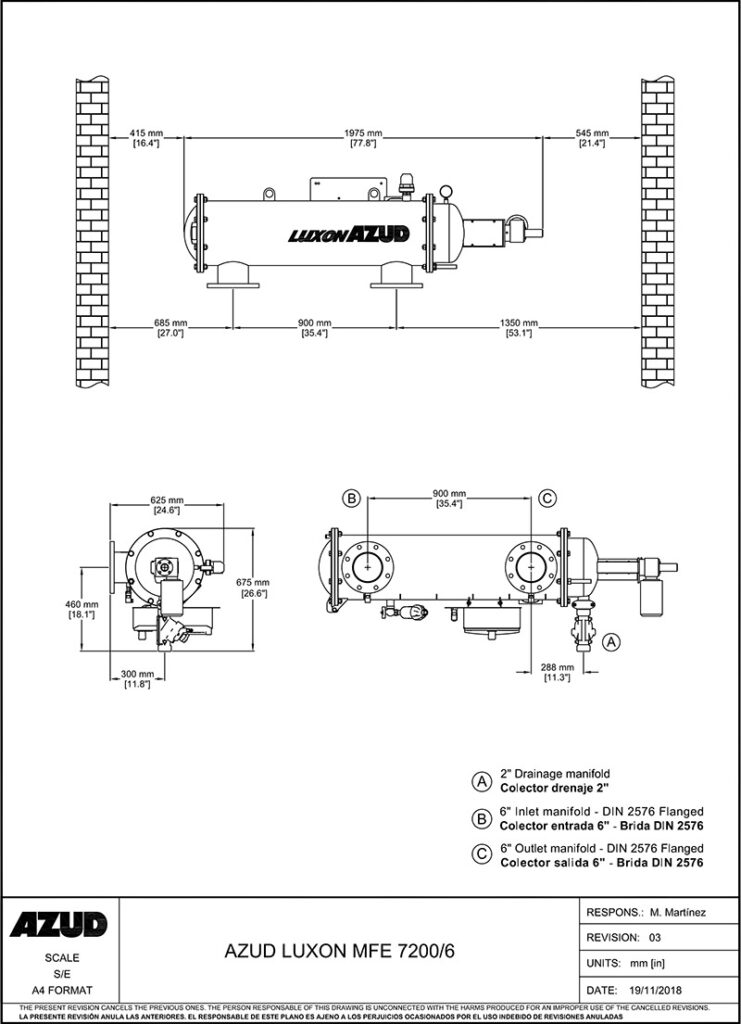

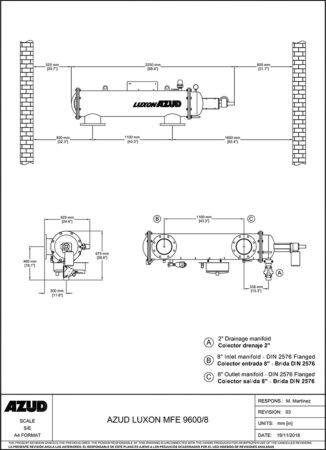

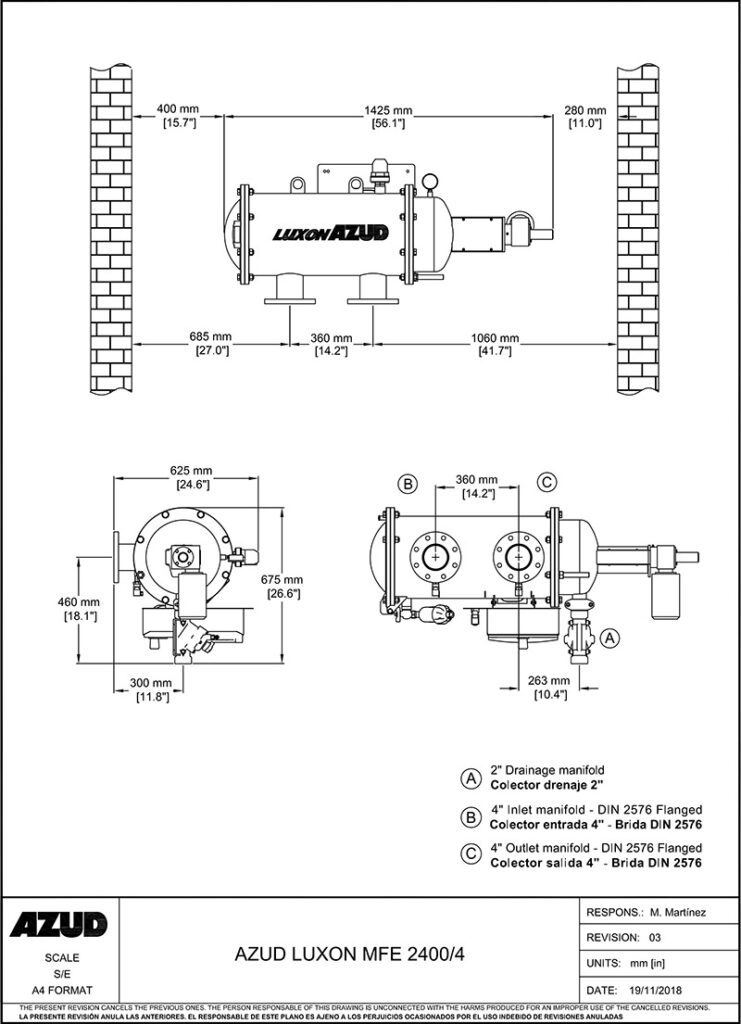

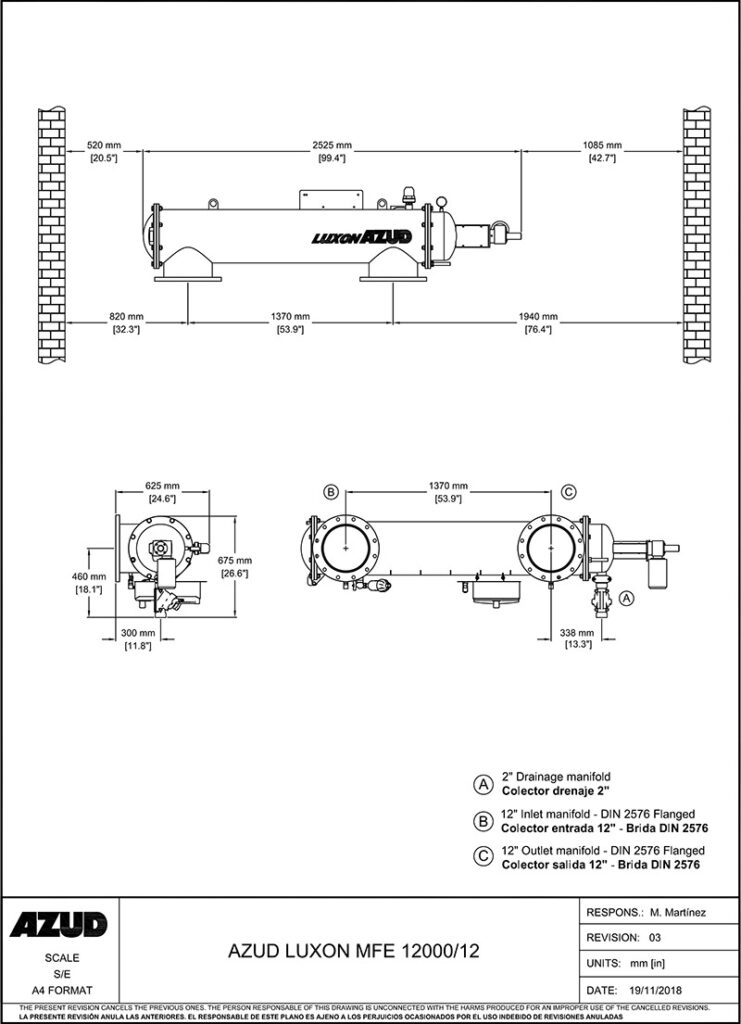

Technical drawings
