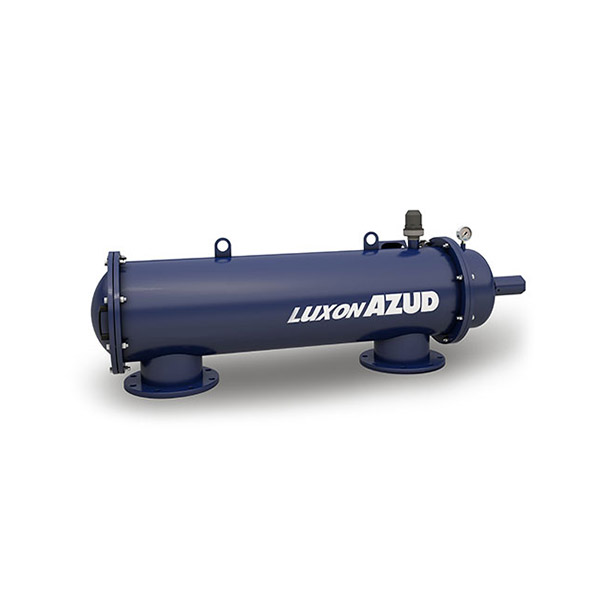

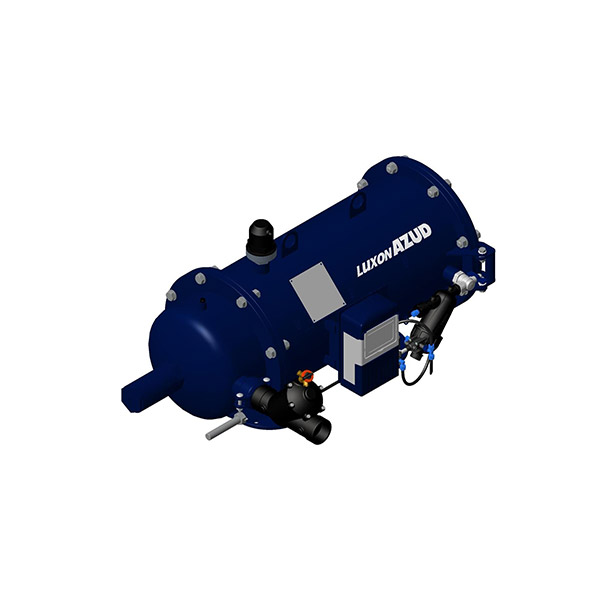

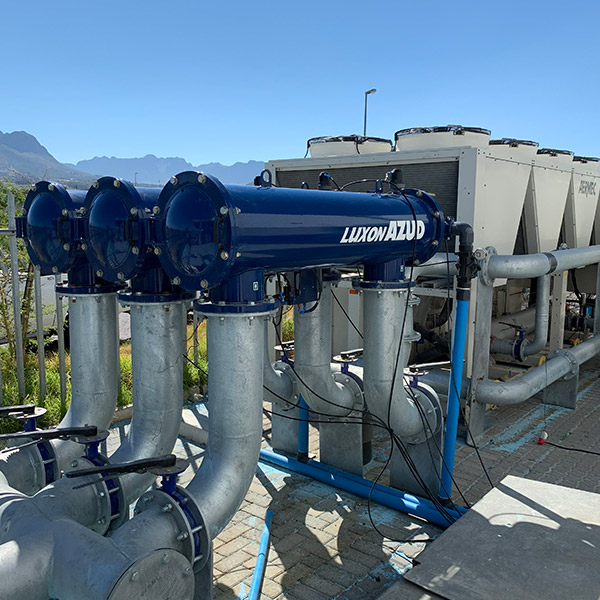

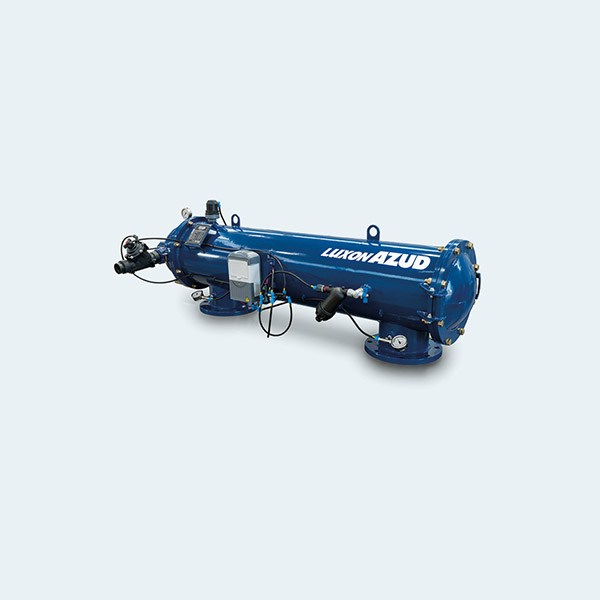

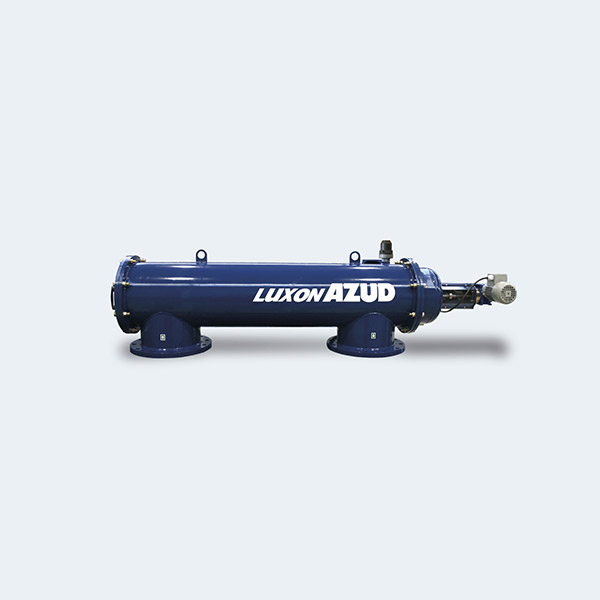

AZUD LUXON MFH
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| Standard series for low salinity water | LUXON MFH |
Automatic hydraulic screen filters suitable for all applications, and available in a wide range of micron sizes, all with the same high-quality guarantee of AZUD.
Filtration surface of up to 12000 cm² and a maximum flow (for 125 micron) of up to 564 m³/h. The cleaning mechanism includes suction nozzles.
TECHNOLOGY

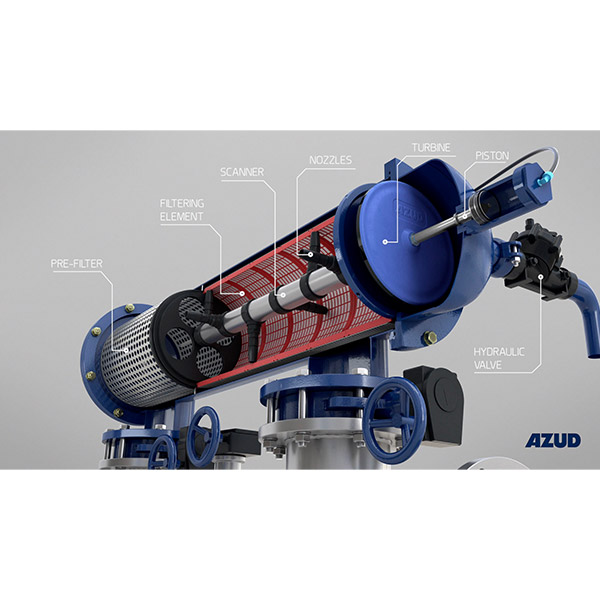

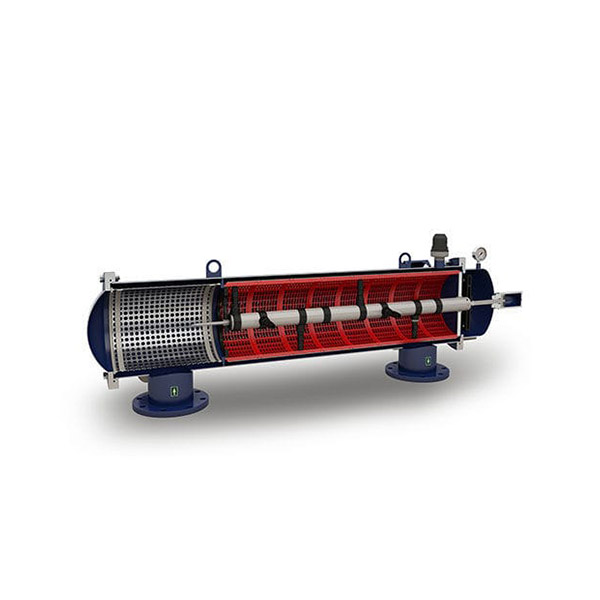

AZUD LUXON filters continue to supply filtered water without interruption during the flushing cycle. The water flows through the inlet and enters through the pre-filter to the inside of the filter element. The water then passes through the screen, and the particles are retained on the inside of the filter element (screen). The filtered water then flows out through the outlet. When the pressure differential from inlet to outlet of the filter reaches the pre-selected level, the flushing cycle starts(ΔP). A hydraulic valve opens in the drain port, which initiates suction in the inner nozzles. This, along with the helical movement up and down
the screen sucks the captured particles into the waste flow, and this is expelled out the drain port. The length of the flush cycle e is pre-determined by the control unit. When the cycle is complete the flush valve closes and the flushing ends. The flushing process uses a minimal amount of water.
Technical Specifications
| Filter Type | Automatic screen filter (self-cleaning system) |
|---|---|
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 10 bar (145 psi) Min: 0.8 bar (11.6 psi) |
| Min. flushing pressure | 2.5 bar (36.3 psi) |
| PH | 5 – 9 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | 1000 – 500 – 300 – 200 – 125 – 100 – 80 – 50 (micron) |
| Connections type | Flange ANSI B16.5, Flange DIN 2576 |
Other Features
Command : Hydraulic command (H)
Axis position : Horizontal
Connection configuration : Parallel
Body : Carbon steel with internal and external epoxy-polyester coating. PN10

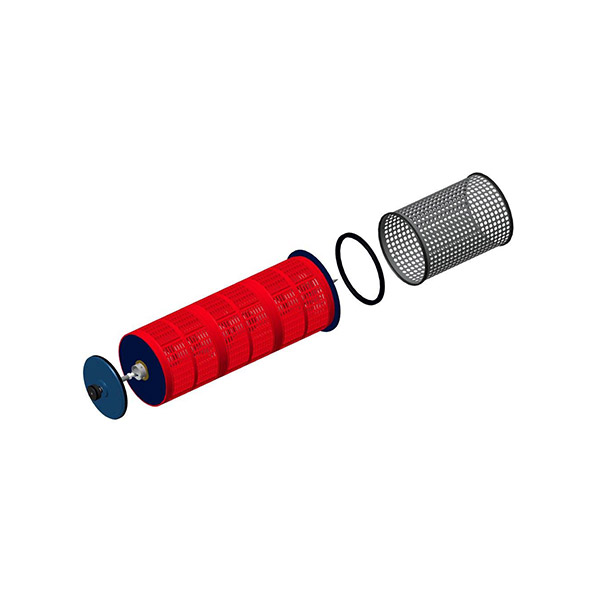

Cartridge : SS 316L weave wire screen with molded PP support
Flushing Device : SS304 scanner with PVC or SS304 suction nozzles
Inlet/Outlet connections : Ø 4”-12” (110-315 mm) – Flange (DIN 2576 / ANSI B16.5)
Drainage valve connection : Ø2” (50 mm) Grooved / BSP thread of reinforced polyamide – Hydraulic activation
Exhaust valve : Diaphragm 2-way valve
Manometer :3 x ¼” BSP glycerine manometer male thread. bar/psi double scale (0-10 bar / 0-145 psi
Control unit : AZUD FBC
Power supply : Battery or 220 V AC single-phase electric plug that can be converted into 110 V AC if neede
| Model | Filtration Area (cm2) | Connections Inlet/Outlet | Max. flow rate m3/h (gpm) - 125 micron | Max. flow rate m3/h (gpm) - 80 micron | Flushing flow rate x duration | Weight (empty) kg | Dimensions - L – W – H (mm) |
|---|---|---|---|---|---|---|---|
| SS 316L screen with Polypropylene molded support | |||||||
| MFH 2400 M/4 MFH 2400 M/6 | 2400 | Ø4” Ø6” | 90 (396) 113 (498) | 67 (295) 67 (295) | 2.8 l/s (44 gpm) x 20 s | 65 | 1160 – 675 – 625 |
| MFH 4800 M/4 MFH 4800 M/6 MFH 4800 M/8 | 4800 | Ø4” Ø6” Ø8” | 90 (396) 170 (749) 226 (995) | 90 (396) 134 (590) 134 (590) | 5.6 l/s (89 gpm) x 20 s | 80 | 1435 – 675 – 625 |
| MFH 7200 M/6 MFH 7200 M/8 MFH 7200 M/10 | 7200 | Ø6” Ø8” Ø10” | 170 (749) 300 (1321) 338 (1448) | 170 (749) 202 (889) 202 (889) | 4.8 l/s (133 gpm) x 20 s | 100 | 1710 – 675 – 625 |
| MFH 9600 M/8 MFH 9600 M/10 MFH 9600 M/12 | 9600 | Ø8” Ø10” Ø12” | 300 (1321) 451 (1986) 451 (1986) | 269 (1185) 269 (1185) 269 (1185) | 2.11 l/s (178 gpm) x 20 s | 135 | 1985 – 675 – 625 |
| MFH 12000 M/8 MFH 12000 M/10 MFH 12000 M/12 | 12000 | Ø8” Ø10” Ø12” | 300 (1321) 500 (2202) 564 (2483) | 300 (1321) 336 (1480) 336 (1480) | 1/14/s (222 gpm) x 20 s | 165 | 2260 – 675 – 625 |
- Maximum flow for good quality water.
- It is possible for the manufacturer to change the technical specifications without prior notice.

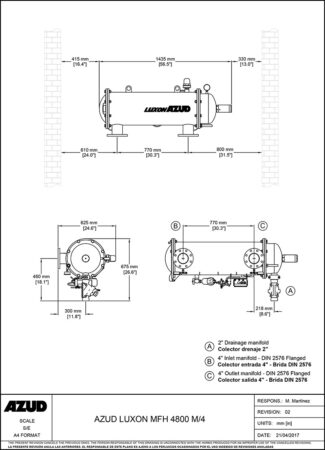

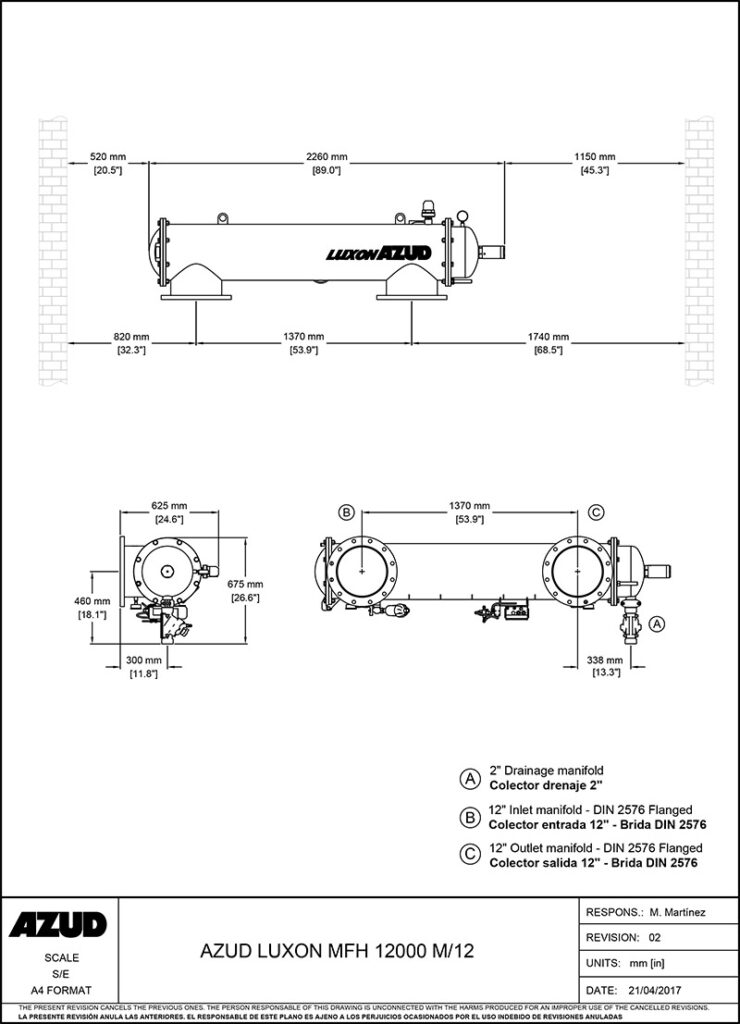

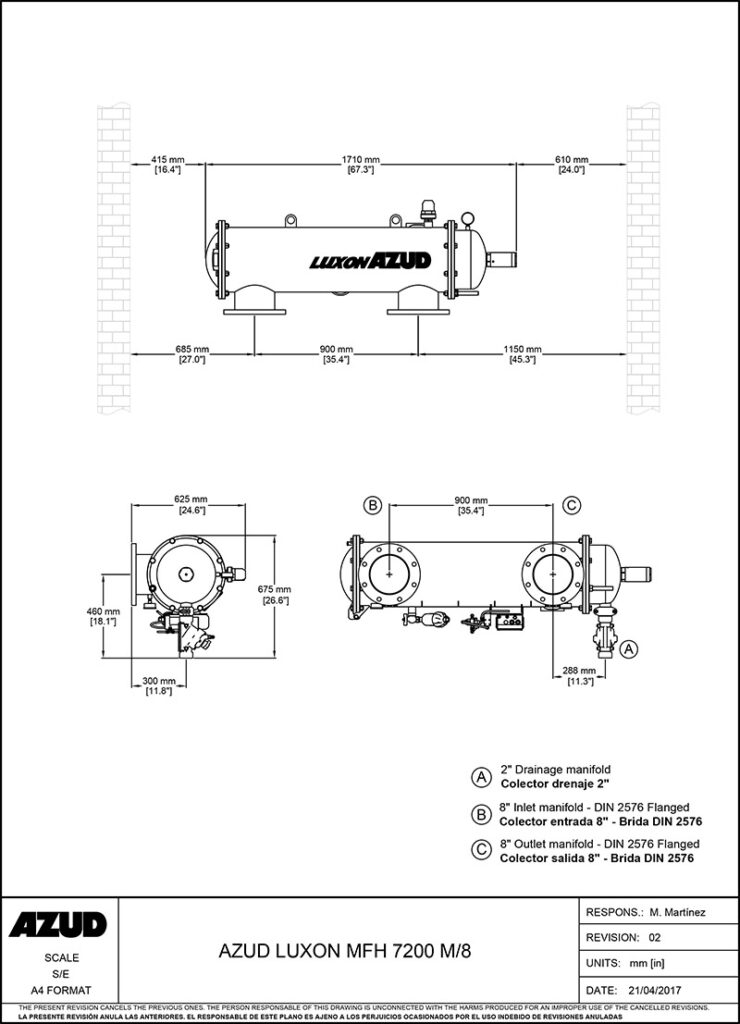

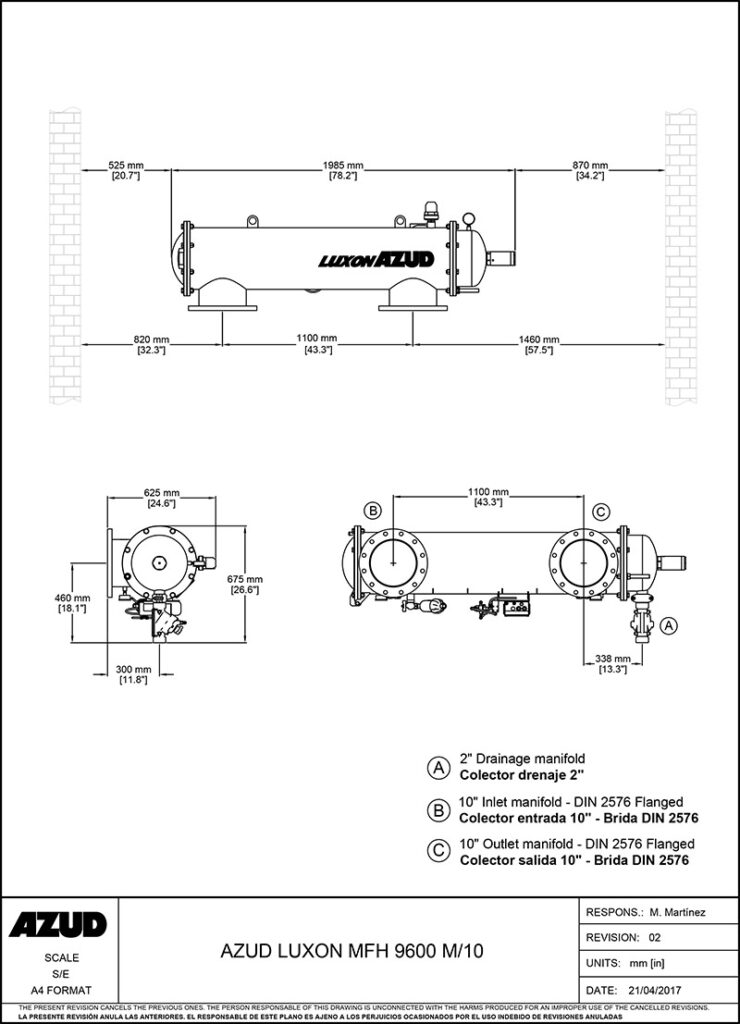

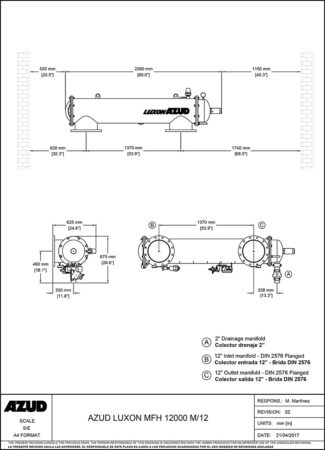

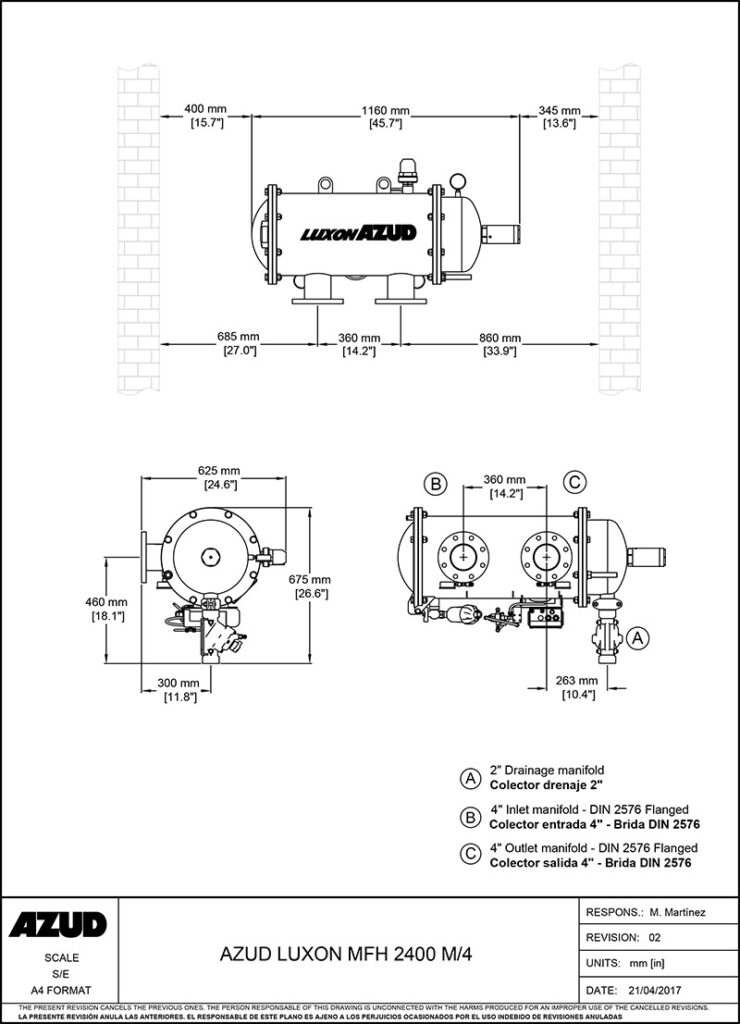

Technical drawings
