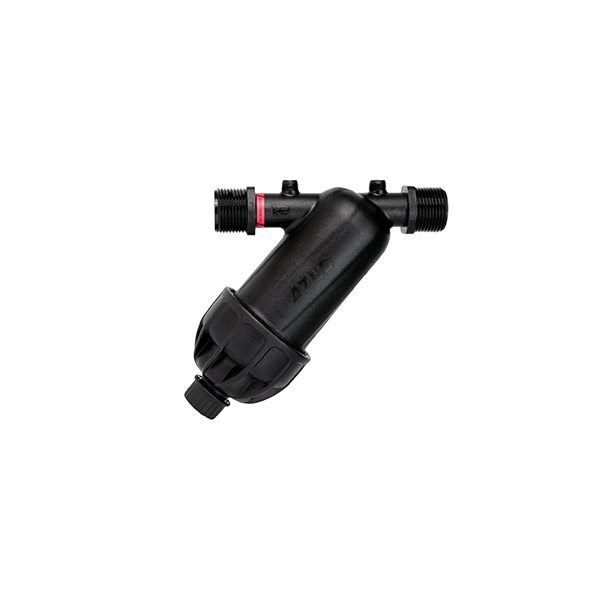

AZUD MODULAR 100
| عنوان فارسی سری | عنوان انگلیسی سری |
|---|---|
| low salinity water – TDS < 6000 mg/l | Standard series |
AZUD MODULAR 100 is the range of filters manufactured in Technical Plastic, which ensures easy handling, high resistance and durability.
Max. Flow: 25 m3/h

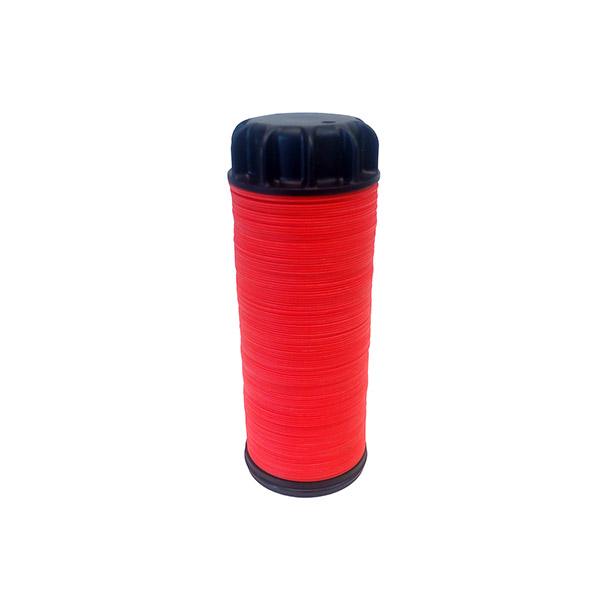

Disc filtering element with threaded closure of easy handling, which ensures the compression and prevents accidental disc loss.
Technical Specifications
| Filter Type | Disk/Screen filter |
|---|---|
| TDS range | TDS < 6000 mg/l |
| Working pressure | Max: 8 bar (116 psi), Min: 0.8 bar (11.6 psi) |
| PH | 4 – 11 |
| Water temperature | ≤ 60 ℃ (140 ℉) |
| Filtration degrees | Disk : 130 (micron), Screen : 530 – 200 – 130 – 100 (micron) |
| Connections type | BSP – NPT |
Other Features
Materials used in construction
- It is possible for the manufacturer to change the technical specifications without prior notice.

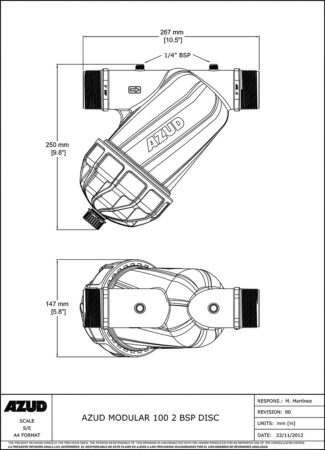

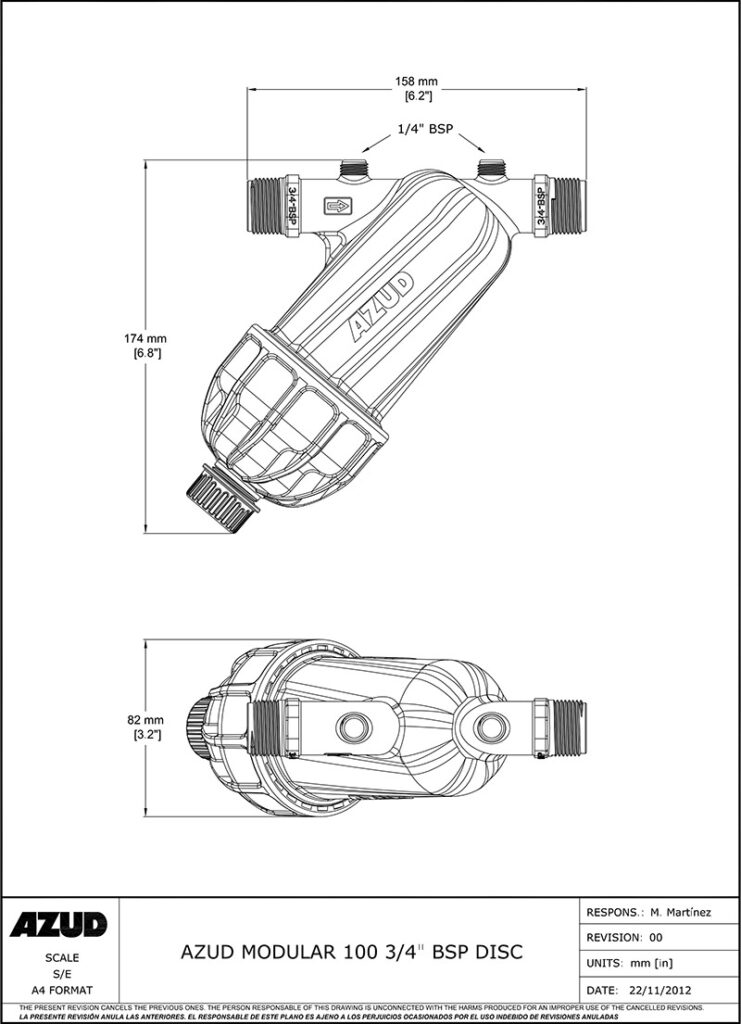

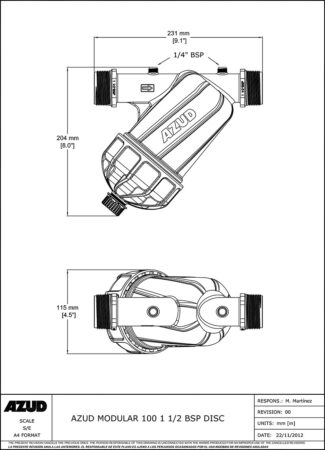

Technical drawings
